Ra+90 SMD2216 LED Strips

LED Type: CRI≥90 SMD2216
Input Voltage:DC24V
Color: Warm White, Nature White, Pure White
LED Qty: 70LED/m-504LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved
Comply with the European ErP EcoDesign regulation

Inquiry Wow Customer Question

※ Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input


※ Parameters
undefined

Model No.LEDVoltageCuttingCRI(Ra)PCB
    Size		Water
    proof		Color(CT:K) lumen
    (lm/m)		Energy
    efficiency
    class
PowerCC/CV
QL-F2216A35SA-VW-24-42216
    70
    LED/m		DC24V

    4.5W/m		100mm

    7LED		≥90
    CV Version		4mmIP20□Warm   White2200K435-465F
QL-F2216A35SA-WW-24-4□Warm   White2700K465-485
QL-F2216A35SA-W-24-4□Warm   White3000K465-485
QL-F2216A35SA-WN-24-4□Warm   White3500K485-505
QL-F2216A35SA-N-24-4□Nature   White4000K485-505
QL-F2216A35SA-NP-24-4□Pure   White5000K505-525
QL-F2216A35SA-P-24-4□Pure   White6500K505-525
QL-F2216A70SA-VW-24-42216
    140
    LED/m		DC24V

    9.2W/m		50mm

    7LED		≥90
    CV Version		4mmIP20□Warm   White2200K8500-900F
QL-F2216A70SA-WW-24-4□Warm   White2700K900-950
QL-F2216A70SA-W-24-4□Warm   White3000K900-950
QL-F2216A70SA-WN-24-4□Warm   White3500K950-1000
QL-F2216A70SA-N-24-4□Nature   White4000K950-1000
QL-F2216A70SA-NP-24-4□Pure   White5000K1000-1050
QL-F2216A70SA-P-24-4□Pure   White6500K1000-1050
QL-F2216A91SA-VW-24-42216
    182
    LED/m		DC24V

    12W/m		38.46mm

    7LED		≥90
    CV Version		4mmIP20□Warm   White2200K1160-1210F
QL-F2216A91SA-WW-24-4□Warm   White2700K1210-1260
QL-F2216A91SA-W-24-4□Warm   White3000K1210-1260
QL-F2216A91SA-WN-24-4□Warm   White3500K1260-1310
QL-F2216A91SA-N-24-4□Nature   White4000K1260-1310
QL-F2216A91SA-NP-24-4□Pure   White5000K1310-1360
QL-F2216A91SA-P-24-4□Pure   White6500K1310-1360
QL-F2216X35SA-VW-242216
    70
    LED/m		DC24V

    4.5W/m		100mm

    7LED		≥90
    CV Version		8mmIP20
    IP67		□Warm   White2200K445-465F
QL-F2216X35SA-WW-24□Warm   White2700K465-485
QL-F2216X35SA-W-24□Warm   White3000K465-485
QL-F2216X35SA-WN-24□Warm   White3500K485-505
QL-F2216X35SA-N-24□Nature   White4000K485-505
QL-F2216X35SA-NP-24□Pure   White5000K505-525
QL-F2216X35SA-P-24□Pure   White6500K505-525
Model No.LEDVoltageCuttingCRI(Ra)PCB
    Size		Water
    proof		Color(CT:K) lumen
    (lm/m)		Energy
    efficiency
    class
PowerCC/CV
QL-F2216X70SA-VW-242216
    140
    LED/m		DC24V

    9.2W/m		50mm

    7LED		≥90
    CV Version		8mmIP20
    IP67		□Warm   White2200K850-900F
QL-F2216X70SA-WW-24□Warm   White2700K900-950
QL-F2216X70SA-W-24□Warm   White3000K900-950
QL-F2216X70SA-WN-24□Warm   White3500K950-1000
QL-F2216X70SA-N-24□Nature   White4000K950-1000
QL-F2216X70SA-NP-24□Pure   White5000K1000-1050
QL-F2216X70SA-P-24□Pure   White6500K1000-1050
QL-F2216X91SA-VW-242216
    182
    LED/m		DC24V

    12W/m		38.46mm

    7LED		≥90
    CV Version		8mmIP20
    IP67		□Warm   White2200K1160-1210F
QL-F2216X91SA-WW-24□Warm   White2700K1210-1260
QL-F2216X91SA-W-24□Warm   White3000K1210-1260
QL-F2216X91SA-WN-24□Warm   White3500K1260-1310
QL-F2216X91SA-N-24□Nature   White4000K1260-1310
QL-F2216X91SA-NP-24□Pure   White5000K1310-1360
QL-F2216X91SA-P-24□Pure   White6500K1310-1360
QL-F2216X119SA-VW-242216
    238
    LED/m		DC24V

    16W/m		29.41mm

    7LED		≥90
    CV Version		10mmIP20
    IP67		□Warm   White2200K1550-1600F
QL-F2216X119SA-WW-24□Warm   White2700K1600-1660
QL-F2216X119SA-W-24□Warm   White3000K1600-1660
QL-F2216X119SA-WN-24□Warm   White3500K1660-1720
QL-F2216X119SA-N-24□Nature   White4000K1660-1720
QL-F2216X119SA-NP-24□Pure   White5000K1720-1780
QL-F2216X119SA-P-24□Pure   White6500K1720-1780
QL-F2216X154SA-VW-242216
    308
    LED/m		DC24V

    21W/m		22.73mm

    7LED		≥90
    CV Version		10mmIP20
    IP67		□Warm   White2200K2070-2130F
QL-F2216X154SA-WW-24□Warm   White2700K2130-2190
QL-F2216X154SA-W-24□Warm   White3000K2130-2190
QL-F2216X154SA-WN-24□Warm   White3500K2190-2250
QL-F2216X154SA-N-24□Nature   White4000K2190-2250
QL-F2216X154SA-NP-24□Pure   White5000K2250-2310
QL-F2216X154SA-W-24□Pure   White6500K2250-2310
Model No.LEDVoltageCuttingCRI(Ra)PCB
    Size		Water
    proof		Color(CT:K) lumen
    (lm/m)		Energy
    efficiency
    class
PowerCC/CV
QL-F2216X154SA-VW-24-82216
    308
    LED/m		DC24V

    21W/m		22.73mm

    7LED		≥90
    CV Version		10mmIP20
    IP67		□Warm   White2200K2070-2130F
QL-F2216X154SA-WW-24-8□Warm   White2700K2130-2190
QL-F2216X154SA-W-24-8□Warm   White3000K2130-2190
QL-F2216X154SA-WN-24-8□Warm   White3500K2190-2250
QL-F2216X154SA-N-24-8□Nature   White4000K2190-2250
QL-F2216X154SA-NP-24-8□Pure   White5000K2250-2310
QL-F2216X154SA-P-24-8□Pure   White6500K2250-2310
QL-F2216A252SA-VW-242216
    504
    LED/m		DC24V

    34W/m		27.77mm

    7LED		≥90
    CV Version		15mm
    Double
    Row		IP20□Warm   White2200K3380-3480F
QL-F2216A252SA-WW-24□Warm   White2700K3480-3580
QL-F2216A252SA-W-24□Warm   White3000K3480-3580
QL-F2216A252SA-WN-24□Warm   White3500K3580-3680
QL-F2216A252SA-N-24□Nature   White4000K3580-3680
QL-F2216A252SA-NP-24□Pure   White5000K3680-3780
QL-F2216A252SA-P-24□Pure   White6500K3680-3780
QL-F2216A63SA-VW-24C2216
    126
    LED/m		DC24V

    8.5W/m		55.55mm

    7LED		≥90
    CC Version		10mmIP20
    IP67		□Warm   White2200K800-860F
QL-F2216A63SA-WW-24C□Warm   White2700K860-890
QL-F2216A63SA-W-24C□Warm   White3000K860-890
QL-F2216A63SA-WN-24C□Warm   White3500K890-920
QL-F2216A63SA-N-24C□Nature   White4000K890-920
QL-F2216A63SA-NP-24C□Pure   White5000K920-950
QL-F2216A63SA-P-24C□Pure   White6500K920-950
Remark: X is for Waterproof type. A for   Non-waterproof,  C for IP67


※ Testing Report for Color Renderingundefined


undefined

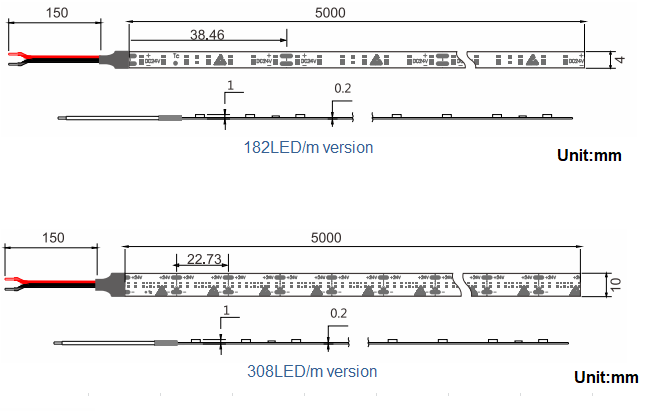

※ Drawingsundefined
