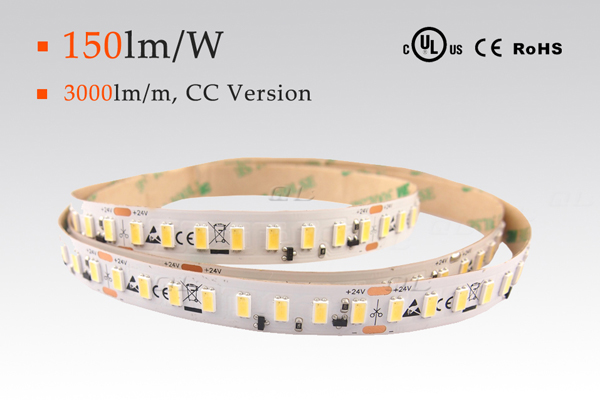

150lm/W 5630 LED Strips

LED Type: High Bright SMD5630 (150lm/W)
Input Voltage: DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 32LED/m, 64LED/m, 128LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input


※ Parameters  for CC Versionundefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
150lm/W, DC24V Input Temperature Sensor Constant Current Version
QL-F5630X64-WW-24C-HE5630128DC24V22W/m 12mmIP20
IP67
≥80Warm White2700-2900K2800-3000
QL-F5630X64-W-24C-HE3000-3200K3000-3100
QL-F5630X64-N-24C-HENature White4000-4500K3100-3200
QL-F5630X64-P-24C-HEPure White6000-6500K3200-3300
QL-F5630X32-WW-24C-HE563064DC24V11.5W/m 10mmIP20
IP67
≥80Warm White2700-2900K1500-1600
QL-F5630X32-W-24C-HE3000-3200K1600-1650
QL-F5630X32-N-24C-HENature White4000-4500K1650-1700
QL-F5630X32-P-24C-HEPure White6000-6500K1700-1750
QL-F5630X16-WW-24C-HE563032DC24V5.7W/m 10mmIP20
IP67
≥80Warm White2700-2900K720-780
QL-F5630X16-W-24C-HE3000-3200K780-810
QL-F5630X16-N-24C-HENature White4000-4500K810-840
QL-F5630X16-P-24C-HEPure White6000-6500K840-860
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

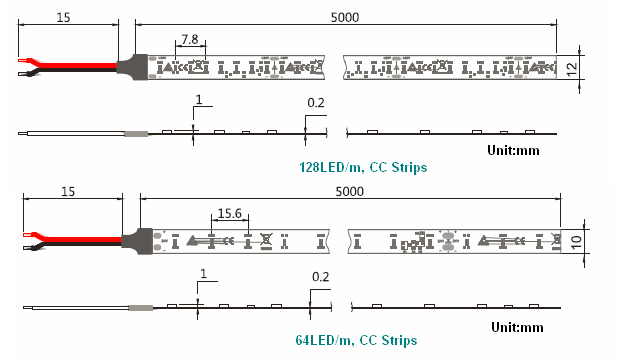

 Drawings
undefined

undefined

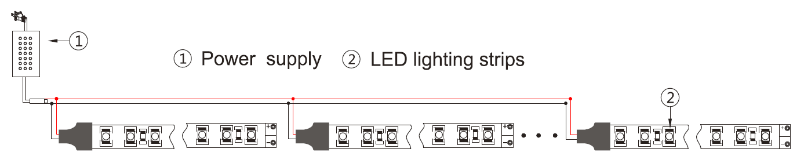

 Connections
undefined


undefined

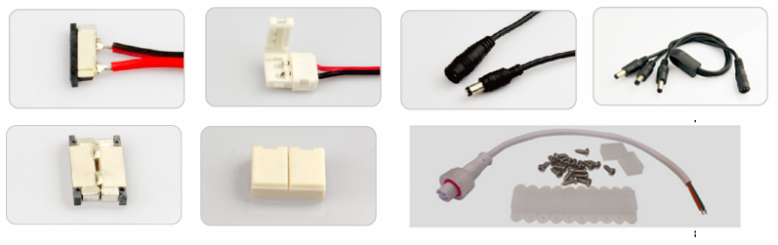

 Accessories

undefined


undefined

 Different Waterproof Version
undefined

undefined

 Packing

undefined

undefined
