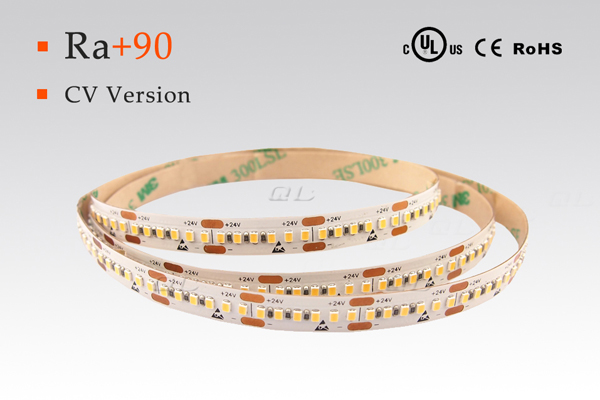

prevnext: Ra+90 2216 LED Strips

LED Type: CRI≥90 SMD2216
Input Voltage:DC24V
Color: Warm White, Nature White, Pure White
LED Qty: 300LED/m
Beam Angle: 120 degree
IP Ratio: IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features of High Intensity LED Strips

High Intensity to ensure idea brightness uniform

※ Parameters

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

QL-F2216A150SA-W-24	2216	300	DC24V	18W/m	8mm	IP20	≥90	Warm White	3000-3200K	1250-1300
QL-F2216A150SA-N-24								Nature White	3900-4200K	1300-1350
QL-F2216A150SA-P-24								Pure White	6000-6500K	1350-1400
QL-F2216X60SA-W-12/24	2216	120	DC24V	9.6W/m	8mm	IP20 IP67	≥90	Warm White	3000-3200K	550-600
QL-F2216X60SA-N-12/24								Nature White	3900-4200K	600-650
QL-F2216X60SA-P-12/24								Pure White	6000-6500K	650-700
QL-F2216X30SA-W-12/24	2216	60	300	4.8W/m	8mm	IP20 IP67	≥90	Warm White	3000-3200K	280-300
QL-F2216X30SA-N-12/24								Nature White	3900-4200K	300-320
QL-F2216X30SA-P-12/24								Pure White	6000-6500K	320-350
Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube
