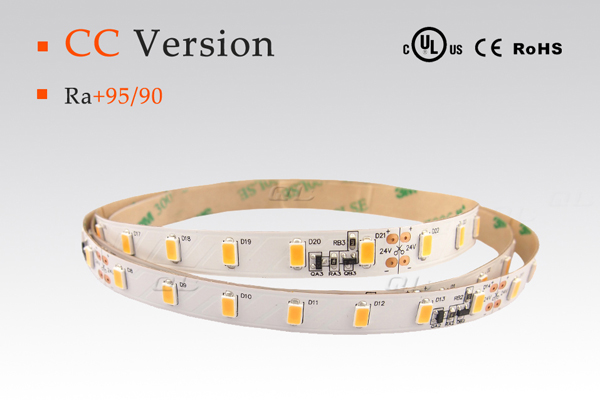

Ra+95/90 5630 CC LED Strips

LED Type: CRI≥95(90) SMD5630
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 60LED/m, 70LED/m, 126LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Featuresundefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input


※ Parameters  for CRI≥95 CC Version undefined


Model No.LED
 Type
LED
Qty
(pcs)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI95, DC12V/DC24V Input Temperature Sensor Constant Current Version
QL-F5630X30SA-WW-12C-95563060DC12V14.4W/m 10mmIP20
IP67
95Warm White2500-2700K1100-1150
QL-F5630X30SA-W-12C-953000-3500K1150-1200
QL-F5630X30SA-N-12C-95Nature White4000-4500K1250-1300
QL-F5630X30SA-P-12C-95Pure White6000-7000K1300-1400
QL-F5630X35SA-WW-24C-95563070DC24V15W/m 10mmIP20
IP67
95Warm White2500-2700K1300-1350
QL-F5630X35SA-W-24C-953000-3500K1350-1400
QL-F5630X35SA-N-24C-95Nature White4000-4500K1450-1500
QL-F5630X35SA-P-24C-95Pure White6000-7000K1500-1600
QL-F5630X63SA-WW-24C-955630126DC24V22W/m 12mmIP20
IP67
95Warm White2500-2700K1700-1900
QL-F5630X63SA-W-24C-953000-3500K1800-1900
QL-F5630X63SA-N-24C-95Nature White4000-4500K2000-2100
QL-F5630X63SA-P-24C-95Pure White6000-7000K2100-2200
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube


 Parameters  for CRI≥90 CC Version
undefined


Model No.LED
 Type
LED
Qty
(pcs)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90, DC12V/DC24V Input Temperature Sensor Constant Current Version
QL-F5630X30SA-WW-12C563060DC12V14.4W/m 10mmIP20
IP67
90Warm White2500-2700K1200-1250
QL-F5630X30SA-W-12C3000-3500K1250-1300
QL-F5630X30SA-N-12CNature White4000-4500K1350-1400
QL-F5630X30SA-P-12CPure White6000-7000K1450-1500
QL-F5630X35SA-WW-24C563070DC24V15W/m 10mmIP20
IP67
90Warm White2500-2700K1400-1450
QL-F5630X35SA-W-24C3000-3500K1450-1500
QL-F5630X35SA-N-24CNature White4000-4500K1500-1550
QL-F5630X35SA-P-24CPure White6000-7000K1550-1600
QL-F5630X63SA-WW-24C5630126DC24V22W/m 12mmIP20
IP67
90Warm White2500-2700K1900-2000
QL-F5630X63SA-W-24C3000-3500K2000-2100
QL-F5630X63SA-N-24CNature White4000-4500K2100-2200
QL-F5630X63SA-P-24CPure White6000-7000K2200-2300
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

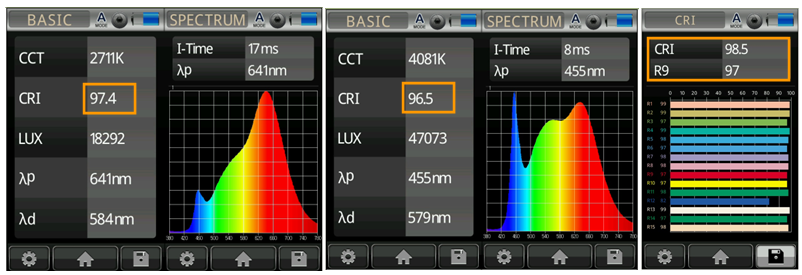

 Testing Report for Color Renderingundefined


undefined


 Drawings

undefined

undefined


 Connections
undefined


undefined


 Accessories
undefined


undefined

 Different Waterproof Version
undefined


undefined

 Packing
