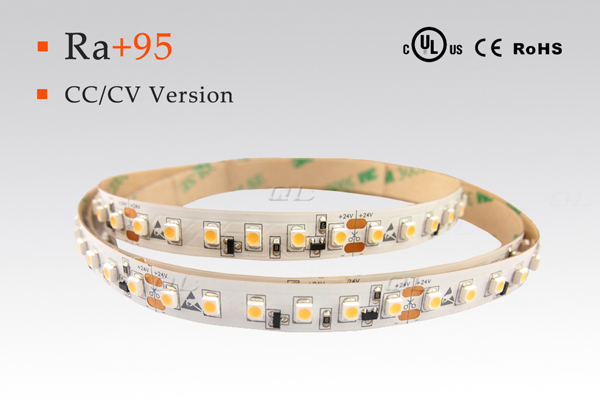

Ra+95 3528 LED Strips

LED Type: CRI≥95 SMD3528
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: White, Red, Green, Blue, Yellow
LED Qty: 60LED/m, 78LED/m, 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesive tape

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters  for CC Versionundefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI95, DC24V Input Temperature Sensor Constant Current Version
QL-F3528X114SAL-P-24C-953528228DC24V18W/m 12mmIP20
IP54
IP67
IP68
90Pure White6000-7000K1600-1700
QL-F3528X114SAL-N-24C-95Nature White4000-4500K1500-1600
QL-F3528X114SAL-W-24C-95Warm White3000-3500K1400-1500
QL-F3528X114SAL-WW-24C-952500-2700K1300-1400
QL-F3528X60SA-P-24C-953528120DC24V14.4W/m 10mmIP20
IP54
IP67
IP68
90Pure White6000-7000K1200-1300
QL-F3528X60SA-N-24C-95Nature White4000-4500K1100-1200
QL-F3528X60SA-W-24C-95Warm White3000-3500K1000-1100
QL-F3528X60SA-WW-24C-952500-2700K950-1000
QL-F3528X30SA-P-24C-95352860DC24V7.2W/m 10mmIP20
IP54
IP67
IP68
90Pure White6000-7000K600-650
QL-F3528X30SA-N-24C-95Nature White4000-4500K550-600
QL-F3528X30SA-W-24C-95Warm White3000-3500K500-550
QL-F3528X30SA-WW-24C-952500-2700K500-530
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue


 Parameters  for CV Versionundefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90, Constant Voltage Version
QL-F3528X60SA-P-12/24-953528120DC12V
DC24V
14.4W/m 10mmIP20
IP54
IP67
IP68
90Pure White6000-7000K1200-1300
QL-F3528X60SA-N-12/24-95Nature White4000-4500K1100-1200
QL-F3528X60SA-W-12/24-95Warm White3000-3500K1000-1100
QL-F3528X60SA-WW-12/24-952500-2700K950-1000
QL-F3528X39SA-P-12/24-95352878DC12V
DC24V
9.4W/m 8mmIP20
IP54
IP67
IP68
90Pure White6000-7000K800-850
QL-F3528X39SA-N-12/24-95Nature White4000-4500K750-800
QL-F3528X39SA-W-12/24-95Warm White3000-3500K700-750
QL-F3528X39SA-WW-12/24-952500-2700K650-700
QL-F3528X30SA-P-12/24-95352860DC12V
DC24V
7.2W/m 10mmIP20
IP54
IP67
IP68
90Pure White6000-7000K600-650
QL-F3528X30SA-N-12/24-95Nature White4000-4500K550-600
QL-F3528X30SA-W-12/24-95Warm White3000-3500K500-550
QL-F3528X30SA-WW-12/24-952500-2700K500-530
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue


 Testing Report for Color Rendering
undefined


undefined

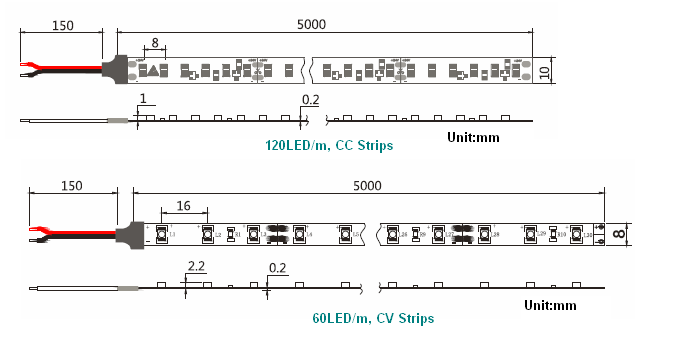

 Drawings
undefined

undefined

 Connections of Single-Color
undefined


undefined

 Accessories of Single-Color

undefined


undefined

 Different Waterproof Version

undefined

undefined

 Packing
