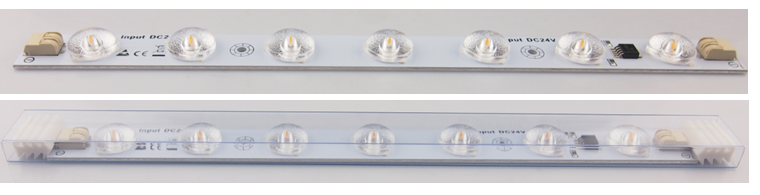

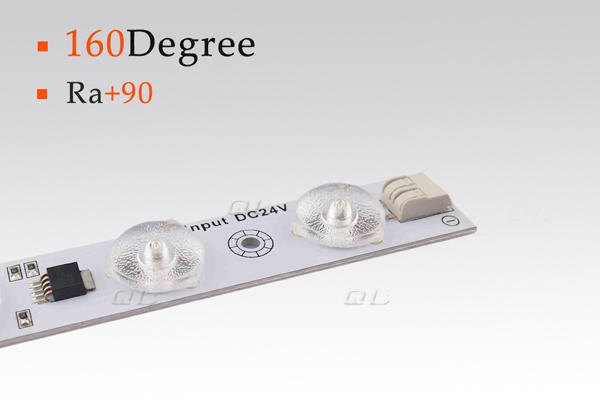

160 Degree Light Bar

LED Type: CRI≥90 1W SMD2835
Input Voltage: DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 7LED/pcs, 14LED/pcs
Beam Angle: 160 degree
IP Ratio: IP20 Version

 Featuresundefined

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

  Parametersundefined


Model No.LED
 Type
LED
Qty
(pcs)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90, DC24V Input Temperature Sensor Constant Current Version
QL-M2835A07-WW-24C28357DC24V7.2W/m 25*2cmIP2090Warm White2700-2900K1000-1100
QL-M2835A07-W-24C3000-3200K520-550
QL-M2835A07-N-24CNature White4000-4500K550-580
QL-M2835A07-P-24CPure White6000-7000K580-600
QL-M2835A14-WW-24C283514DC24V14.4W/m 50*2cmIP2090Warm White2700-2900K1000-1100
QL-M2835A14-W-24C3000-3200K1050--1100
QL-M2835A14-N-24CNature White4000-4500K1100-1050
QL-M2835A14-P-24CPure White6000-7000K1150-1200
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

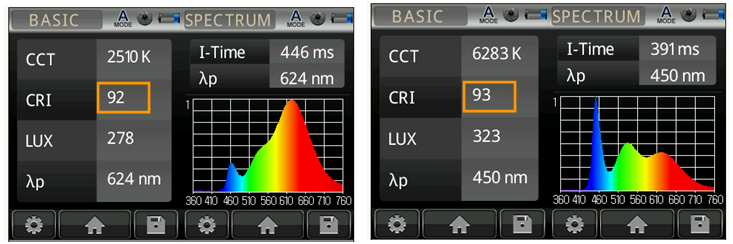

  Testing Report for Color Renderingundefined


undefined

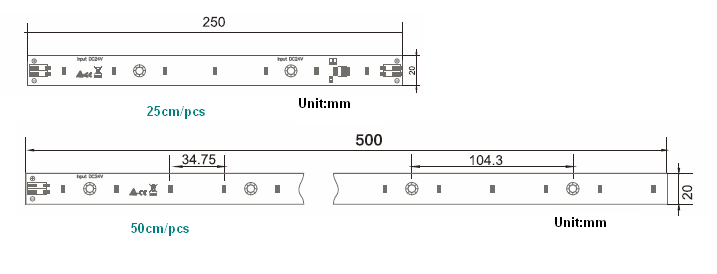

  Drawingsundefined


undefined

  Connectionsundefined


undefined


  packingundefined


undefined
