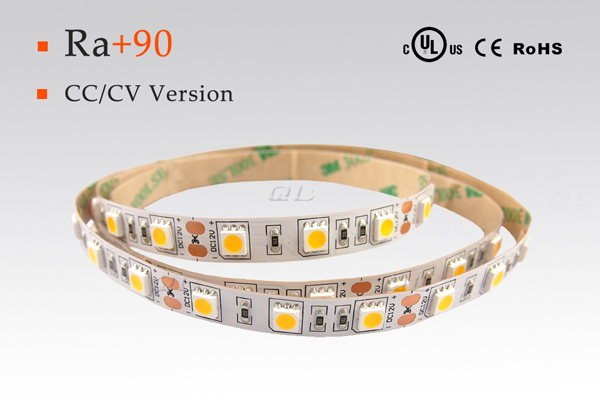

Ra+90 5050 LED Strips

LED Type: CRI≥90 SMD5050
Input Voltage:DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 30LED/m, 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters  for CC Versionundefined


Model No.LED
 Type
LED Qty (m)Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90, DC24V Input Temperature Sensor Constant Current Version
QL-F5050X30SA-P-24C505060DC24V14.4W/m 10mmIP20
IP54
IP67
IP68
90Pure White6000-7000K1300-1400
QL-F5050X30SA-N-24CNature White4000-4500K1200-1300
QL-F5050X30SA-W-24CWarm White3000-3500K1100-1200
QL-F5050X30SA-WW-24C2500-2700K1000-1100
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue


 Specifications for CV Version
undefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90 Version, Constant Voltage
QL-F5050X15SA-P-12/24505030DC12V
DC24V
7.2W/m 10mmIP20
IP54
IP67
IP68
90Pure White6000-7000K650-700
QL-F5050X15SA-N-12/24Nature White4000-4500K600-650
QL-F5050X15SA-W-12/24Warm White3000-3500K550-600
QL-F5050X15SA-WW-12/242500-2700K500-550
QL-F5050X30SA-P-12/24505060DC12V
DC24V
14.4W/m 10mmIP20
IP54
IP67
IP68
90Pure White6000-7000K1300-1400
QL-F5050X30SA-N-12/24Nature White4000-4500K1200-1300
QL-F5050X30SA-W-12/24Warm White3000-3500K1100-1200
QL-F5050X30SA-WW-12/242500-2700K1000-1100
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue

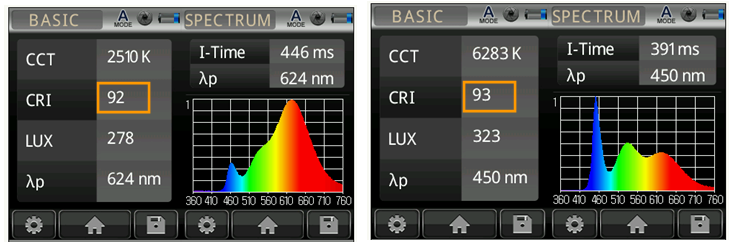

 Testing Report for Color Rendering
undefined


undefined

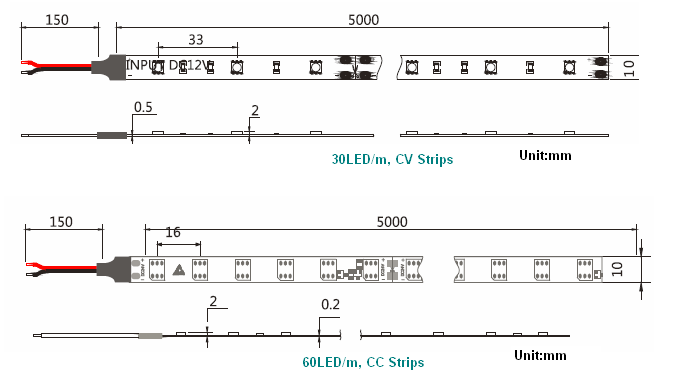

 Drawings
undefined

undefined

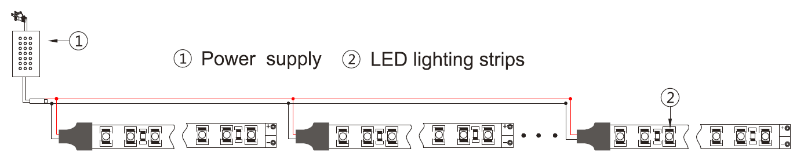

 Connections
undefined


undefined

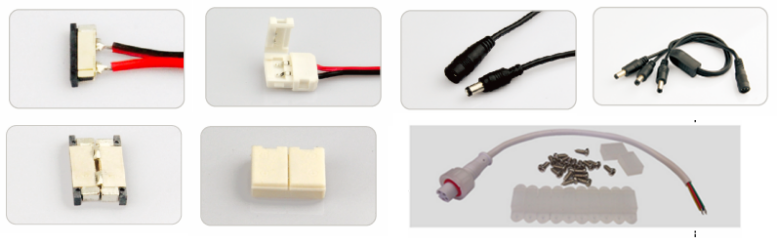

 Accessories of RGB-Color
undefined


undefined

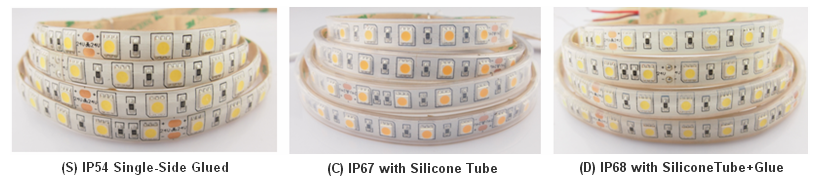

 Different Waterproof Version
undefined


undefined

 Packing

undefined

undefined
