LED Type: CRI≥90 SMD3528 (with two chips in one LED)
Input Voltage:DC12V/DC24V (with temperature sensor)
Color: 2500K to 6500K adjustable
LED Qty:60LED/m, 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
Features of 2-Chips-in-1-LED CCT Strips:
● With two chips in one LED. The mix color is pretty idea
Features of QL Temperature Sensor Constant Current Strips:
● Constant current version: with stable current, suitable for high quality requirements project.
● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.
● Can work with unstable power supply and without damage.
● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.
● Brightness uniform: With same brightness from the first end to the last end for around 10m.
● DC24V version: can work with DC20V to DC30V Input
● DC 12V version: can work with DC10V to DC15V Input
※ Parameters
| Model No. | LED | Voltage | Cutting | CRI(Ra) | PCB Size | Water proof | Color | (CT:K) | lumen (lm/m) | Energy efficiency class |
| Power | CC/CV | |||||||||
| QL-F3528A70T-HA-24 | 3528 2-in-1 140 LED/m | DC24V 19W/m | 50mm 7LED | ≥90 CV Version | 10mm | IP20 | □□Dual White | 2500-6000K | 1750-1850 | F |
| QL-F3528C70T-HA-24 | IP67 | |||||||||
| QL-F3528A78T-HA-24 | 3528 2-in-1 156 LED/m | DC24V 23W/m | 38.46mm 6LED | ≥90 CV Version | 8mm | IP20 | □□Dual White | 2500-6000K | 1700-1800 | / |
| QL-F3528C78T-HA-24 | IP67 | |||||||||
| QL-F3528A60T-HA-24 | 3528 2-in-1 120 LED/m | DC24V 19.2W/m | 50mm 6LED | ≥90 CV Version | 10mm | IP20 | □□Dual White | 2500-6000K | 1300-1400 | / |
| QL-F3528C60T-HA-24 | IP67 | |||||||||
| QL-F3528A30T-HA-24 | 3528 2-in-1 60 LED/m | DC24V 9.6W/m | 100mm 6LED | ≥90 CV Version | 10mm | IP20 | □□Dual White | 2500-6000K | 600-700 | / |
| QL-F3528C30T-HA-24 | IP67 | |||||||||
| QL-F3528A60T-HA-12 | 3528 2-in-1 120 LED/m | DC12V 19.2W/m | 25mm 3LED | ≥90 CV Version | 10mm | IP20 | □□Dual White | 2500-6000K | 1300-1400 | / |
| QL-F3528C60T-HA-12 | IP67 | |||||||||
| QL-F3528A30T-HA-12 | 3528 2-in-1 60 LED/m | DC12V 9.6W/m | 50mm 3LED | ≥90 CV Version | 10mm | IP20 | □□Dual White | 2500-6000K | 600-700 | / |
| QL-F3528C30T-HA-12 | IP67 | |||||||||
| QL-F3528A30T-HA-24C | 3528 2-in-1 60 LED/m | DC24V 9.6W/m | 100mm 6LED | ≥90 CC Version | 10mm | IP20 | □□Dual White | 2500-6000K | 600-700 | / |
| QL-F3528C30T-HA-24C | IP67 | |||||||||
| Remark: X is for Waterproof type. A for Non-waterproof, C for IP67 | ||||||||||
※ Testing Report for Color Rendering

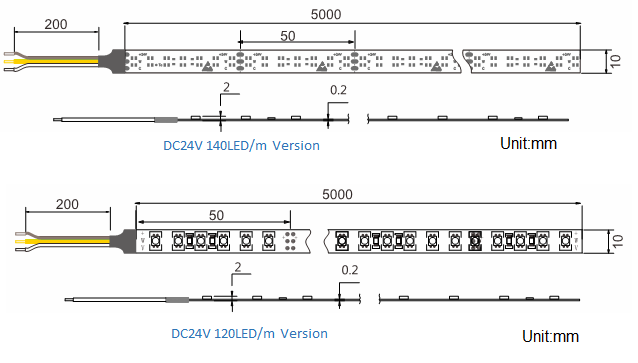

※ Drawings
※ Connections
※ Different Waterproof Version
※ Packing
