2216 Dim to Warm LED Strips|Dim to Warm Strips|

Address: 5F, BLDG A, Huilongda Ind. Zone, Shilongzai, Shiyan Town, Baoan Dist., Shenzhen, Guangdong, China

Tel: +86-755-29682086

Fax: +86-755-29682109

Skype: qlsales

prevnext: 2216 Dim to Warm LED Strips

LED Type: CRI≥90 SMD2216
Input Voltage: DC24V
Color: Dim to Warm (1800-2800K)
LED Qty: 252LED/m, 504LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features

Features of 2-Chips-in-1-LED CCT Strips:

● Dim to Warm for special application

※ Parameters

Model No.	LED	Voltage	Cutting	CRI(Ra)	PCB Size	Water proof	Color (CT:K)	lumen (lm/m)
		Power		CC/CV

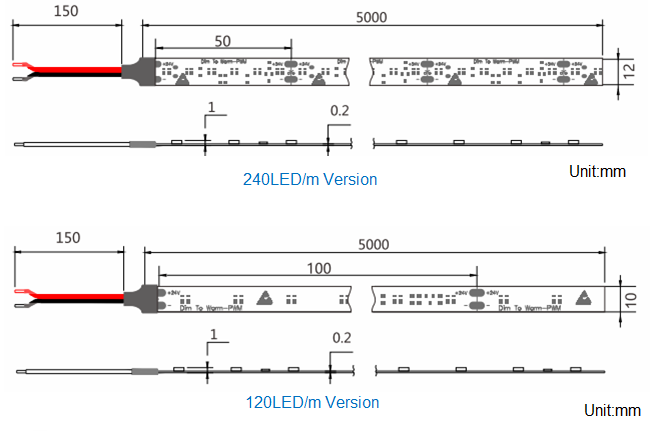

QL-F2216A60SA-DTW-24-PWM	2216 120 LED/m	DC24V 10W/m	10mm 12LED	≥90 CV Version	8mm	IP20	Dim to Warm 1800-2800K	900-950
QL-F2216C60SA-DTW-24-PWM						IP67
QL-F2216A120SA-DTW-24-PWM	2216 240 LED/m	DC24V 20W/m	10mm 12LED	≥90 CV Version	10mm	IP20	Dim to Warm 1800-2800K	1800-1900
QL-F2216C120SA-DTW-24-PWM						IP67
Remark: X is for Waterproof type. A for Non-waterproof, C for IP67 Version
