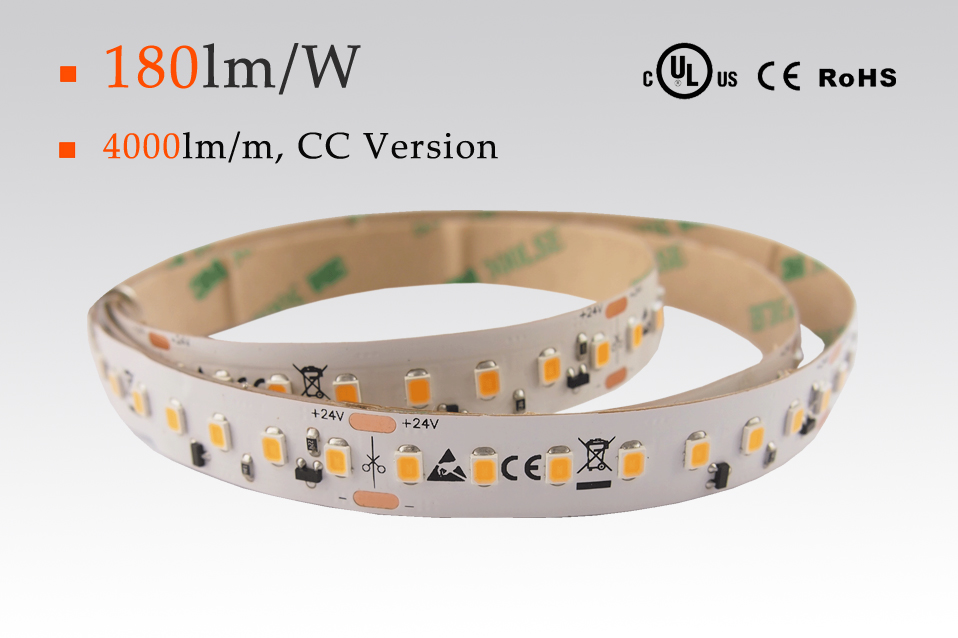

180lm/W 5630 LED Strips

LED Type: High Bright SMD5630 (180lm/W)
Input Voltage: DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 64LED/m, 128LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● With temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

 Parameters  for CC Version

Model   No.LED
 Type
LED Qty (m)Work VoltagePowerPCB
    Size
Water
    proof
CRIColorλ(Nm)/(CT:K) Lumen
    (lm/m)
Efficiency
180lm/W, DC24V Input Temperature Sensor Constant Current Version
QL-F2835X64-WW-24C-HE2835128DC24V22W/m 12mmIP20
    IP67
≥80Warm White2700-2900K3200-3300150lm/W
QL-F2835X64-W-24C-HEWarm White3000-3200K3700-3800170lm/W
QL-F2835X64-N-24C-HENature White4000-4500K3900-4000180lm/W
QL-F2835X64-P-24C-HEPure White6000-6500K3900-4000180lm/W
QL-F2835X32-WW-24C-HE283564DC24V11.5W/m 10mmIP20
    IP67
≥80Warm White2700-2900K1700-1800150lm/W
QL-F2835X32-W-24C-HEWarm White3000-3200K1900-2000170lm/W
QL-F2835X32-N-24C-HENature White4000-4500K2000-2100180lm/W
QL-F2835X32-P-24C-HEPure White6000-6500K2000-2100180lm/W

Remark: X stands   for waterproof version,  A for IP20   non-waterproof version, C for IP67 version with silicone tube

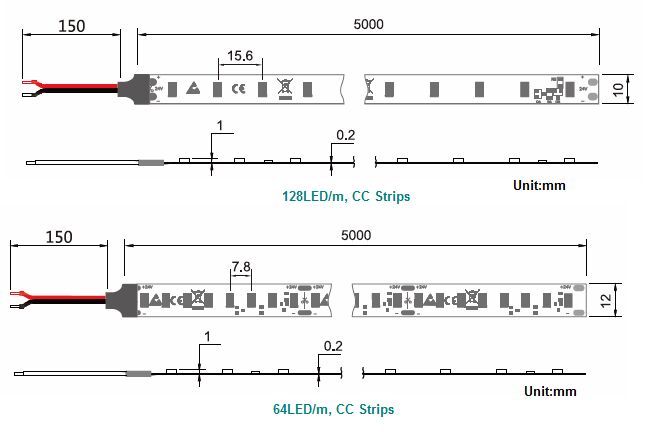

 Drawings
undefined

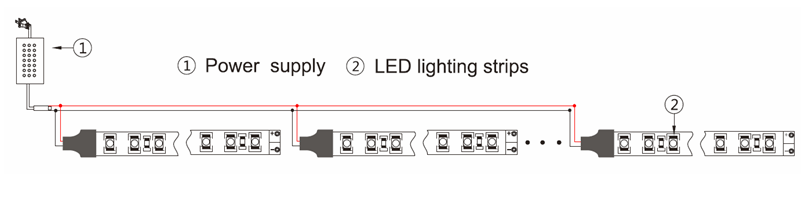

 Connectionsundefined

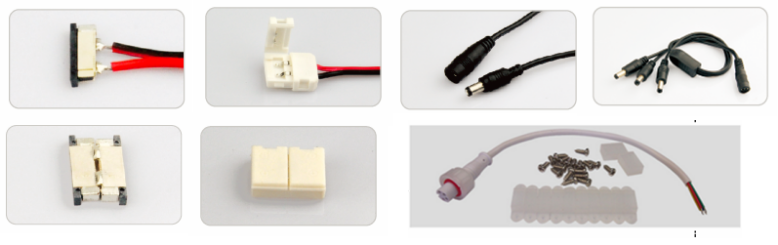

 Accessories
undefined


undefined

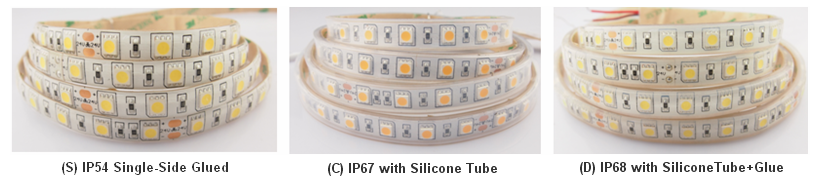

 Different  Waterproof  Version
undefined

undefined

 Packing
undefined

undefined
