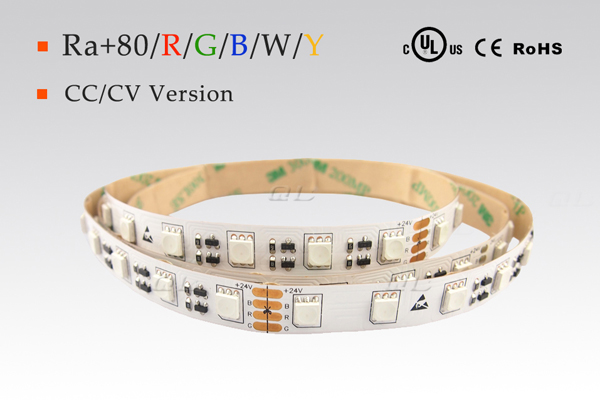

prevnext: Colored 5050 LED Strips

LED Type: Super Bright SMD5050
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: RGB, White, Red, Green, Blue, Yellow
LED Qty: 30LED/m, 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters for CC Version

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

DC24V Input Temperature Sensor Constant Current Version
QL-F5050X30-C-24C	5050	60	DC24V	14.4W/m	12mm	IP20 IP54 IP67 IP68	≥80	RGB	R:620-625	700-720
									G:520-525
									B:465-470
QL-F5050X30-P-24C					10mm			Pure White	6000-7000K	1200-1300
QL-F5050X30-N-24C								Nature White	4000-4500K	1100-1200
QL-F5050X30-W-24C								Warm White	3000-3500K	1000-1100
QL-F5050X30-WW-24C									2500-2700K	950-1000
QL-F5050X30-VW-24C									2200-2400K	900-950
QL-F5050X30-B-24C								Blue	B:465-470nm	300-320
QL-F5050X30- G-24C								Green	G:520-525nm	900-1000
Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue

※ Parameters for CV Version

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

Constant Voltage Version
QL-F5050X15-P-12/24	5050	30LED	DC12V	7.2W/m	10mm	IP20 IP54 IP67 IP68	≥80	Pure White	6000-7000K	600-650
QL-F5050X15-N-12/24								Nature White	4000-4500K	550-600
QL-F5050X15-W-12/24								Warm White	3000-3500K	500-550
QL-F5050X15-WW-12/24									2500-2700K	4700-500
QL-F5050X15-VW-12/24									2200-2400K	450-470
QL-F5050X15-R-12/24								Red	620-630	220-250
QL-F5050X15-Y-12/24								Yellow	585-595	220-250
QL-F5050X15-B-12/24								Blue	455-470	150-160
QL-F5050X15-G-12/24								Green	510-525	450-500
QL-F5050X15-C-12/24								RGB	620-630	350-360
									510-525
									455-470
QL-F5050X30-P-12/24	5050	60LED	DC12V	14.4W/m	10mm	IP20 IP54 IP67 IP68	≥80	Pure White	6000-7000K	1200-1300
QL-F5050X30-N-12/24								Nature White	4000-4500K	1100-1200
QL-F5050X30-W-12/24								Warm White	3000-3500K	1000-1100
QL-F5050X30-WW-12/24									2500-2700K	950-1000
QL-F5050X30-VW-12/24									2200-2400K	900-950
QL-F5050X30-R-12/24								Red	620-630	450-500
QL-F5050X30-Y-12/24								Yellow	585-595	450-500
QL-F5050X30-B-12/24								Blue	455-470	300-320
QL-F5050X30-G-12/24								Green	510-525	900-1000
QL-F5050X30-C-12/24								RGB	620-630	700-720
									510-525
									455-470
Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue
