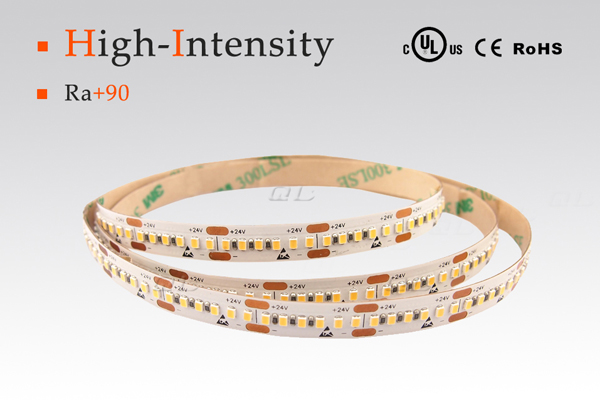

300LEDm 2216 CV LED Strips

LED Type: CRI≥90 SMD2216
Input Voltage: DC24V
Color: Warm White, Nature White, Pure White
LED Qty: 300LED/m
Beam Angle: 120 degree
IP Ratio: IP20 non-waterproof Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features of High Intensity LED Stripsundefined

High Intensity to ensure idea brightness uniform

※ Parameters undefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
QL-F2216A150SA-W-242216300DC24V18W/m 8mmIP20≥90Warm White3000-3200K1250-1300
QL-F2216A150SA-N-24Nature White3900-4200K1300-1350
QL-F2216A150SA-P-24Pure White6000-6500K1350-1400

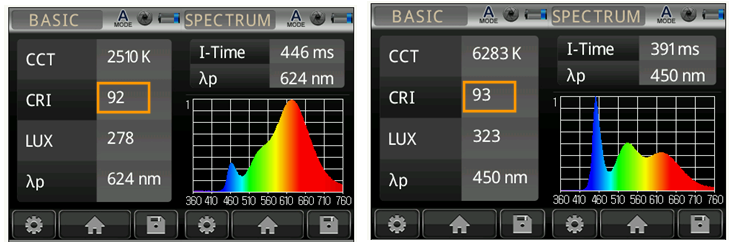

 Testing Report for Color Renderingundefined

undefined

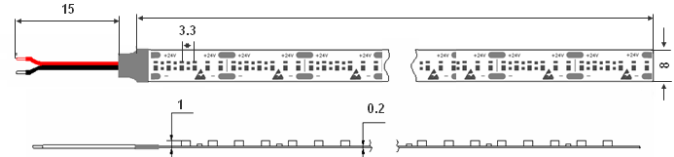

 Drawingsundefined


undefined

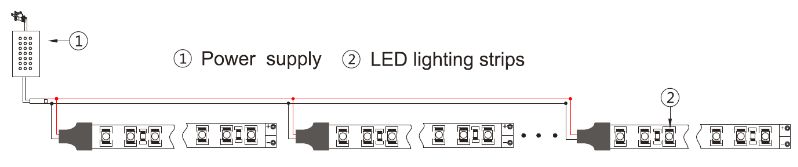

  Connectionsundefined

undefined

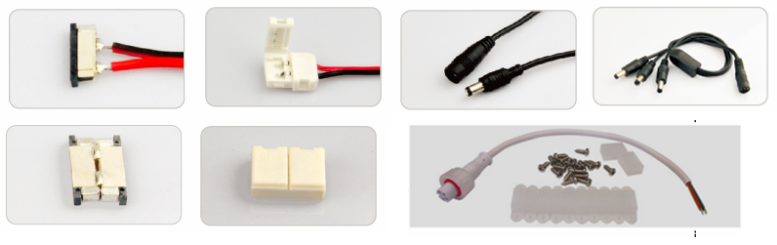

 Accessoriesundefined


undefined


 Different Waterproof Version
undefined


undefined

 Packing
undefined

undefined
