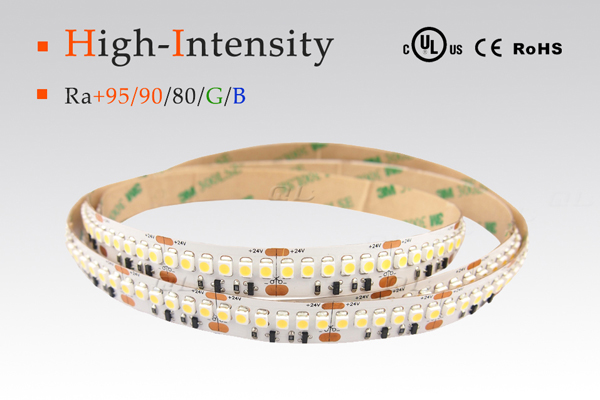

228LED/m 3528 CC LED Strips

LED Type: CRI≥95/90 SMD3528
Input Voltage: DC24V (with temperature sensor)
Color: Warm White, Nature White, Pure White, Green, Blue
LED Qty: 228LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of High Intensity LED Strips:

High Intensity to ensure idea brightness uniform

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters undefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI95
 QL-F3528X114SA-WW-24C-953528228DC24V18W/m 12mmIP20
IP67
95Warm White2500-2700K1600-1700
 QL-F3528X114SA-W-24C-953000-3500K1500-1600
 QL-F3528X114SA-N-24C-95Nature White4000-4500K1400-1500
 QL-F3528X114SA-P-24C-95Pure White6000-7000K1300-1400
CRI90
 QL-F3528X114SA-WW-24C3528228DC24V18W/m 12mmIP20
IP67
90Warm White2500-2700K1700-1800
 QL-F3528X114SA-W-24C3000-3500K1600-1700
 QL-F3528X114SA-N-24CNature White4000-4500K1500-1600
 QL-F3528X114SA-P-24CPure White6000-7000K1400-1500
CRI80
  QL-F3528X114-VW-243528228DC24V18W/m 12mmIP20
IP67
≥80Warm White2200-2400K1500-1600
  QL-F3528X114-WW-242500-2700K1400-1500
  QL-F3528X114-W-243000-3500K1350-1400
  QL-F3528X114-N-24Nature White4000-4500K1300-1350
 QL- F3528X114-P-24Pure White6000-7000K1250-1300
  QL-F3528X114-B-24/Blue455-470400-420
  QL-F3528X114-G-24Green510-5251200-1300
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

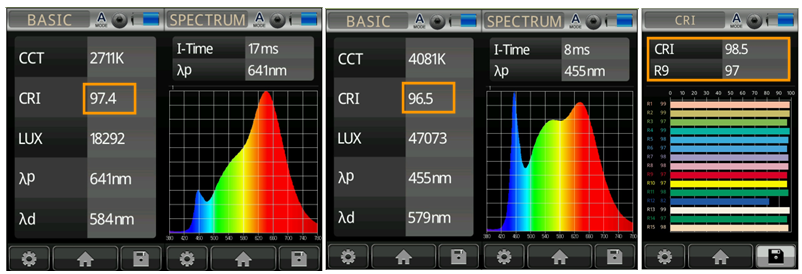

 Testing Report for Color Renderingundefined


undefined

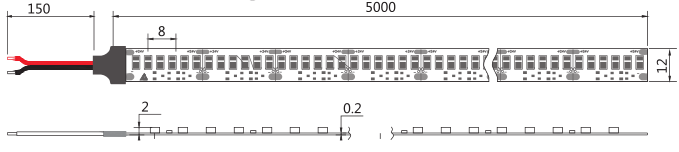

 Drawingsundefined


undefined

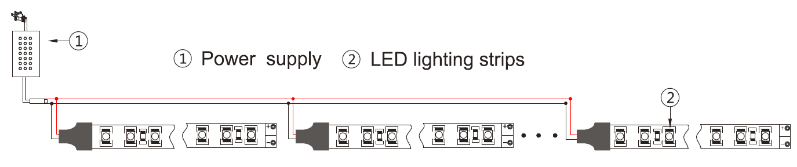

  Connectionsundefined

undefined

 Accessoriesundefined


undefined

 Different Waterproof Version

undefined


undefined

 Packing
undefined

undefined
