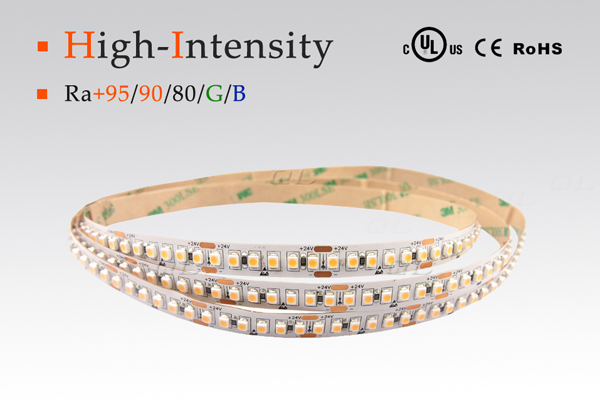

180LED/m 3528 CV LED Strips

LED Type: CRI≥95/90 SMD3528
Input Voltage: DC24V
Color: Warm White, Nature White, Pure White, Green, Blue
LED Qty: 180LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features undefined

 Features of High Intensity LED Strips:

High Intensity to ensure idea brightness uniform


※ Parameters undefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI95
 QL- F3528X90SAL-WW-24-953528180DC24V14.4W/m 10mmIP20
IP67
95Warm White2500-2700K950-1000
 QL- F3528X90SAL-W-24-953000-3500K1000-1100
  QL-F3528X90SAL-N-24-95Nature White4000-4500K1100-1200
 QL- F3528X90SAL-P-24-95Pure White6000-7000K1200-1300
CRI90
 QL- F3528X90SAL-WW-243528180DC24V14.4W/m 10mmIP20
IP67
90Warm White2500-2700K1000-1100
 QL- F3528X90SAL-W-243000-3500K1100-1200
  QL-F3528X90SAL-N-24Nature White4000-4500K1200-1300
 QL- F3528X90SAL-P-24Pure White6000-7000K1300-1400
CRI80
  QL-F3528X90-VW-243528180DC24V14.4W/m 10mmIP20
IP67
≥80Warm White2200-2400K850-900
  QL-F3528X90-WW-242500-2700K900-950
  QL-F3528X90-W-243000-3500K950-1000
  QL-F3528X90-N-24Nature White4000-4500K1000-1100
 QL- F3528X90-P-24Pure White6000-7000K1100-1200
  QL-F3528X90-B-24/Blue455-470300-350
  QL-F3528X90-G-24Green510-525800-1000
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

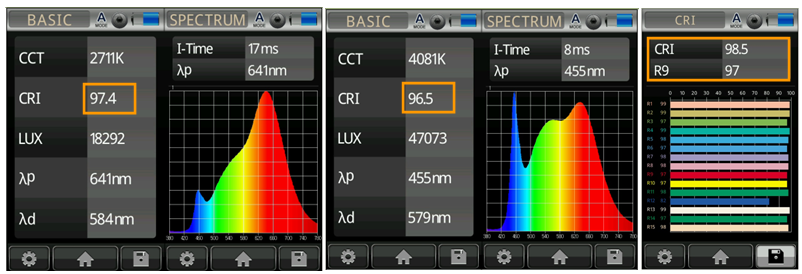

 Testing Report for Color Rendering
undefined

undefined

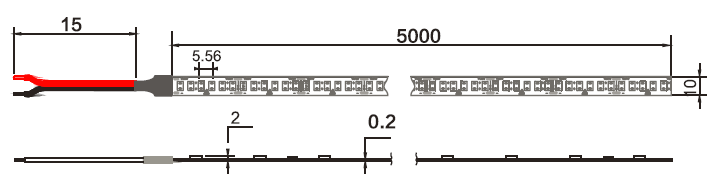

 Drawingsundefined


undefined

  Connectionsundefined

undefined

 Accessoriesundefined

undefined


 Different Waterproof Version
undefined


undefined


 Packing
