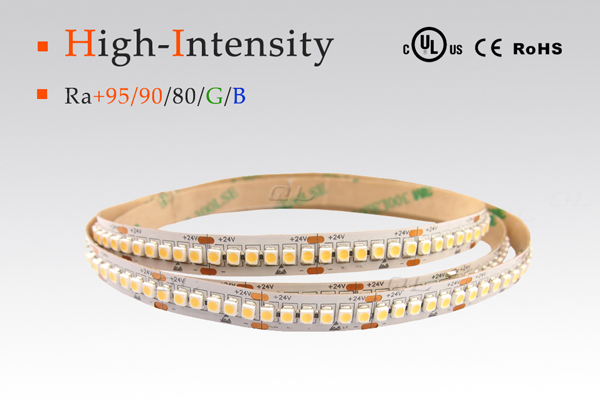

240LED/m 3528 CV LED Strips

LED Type: CRI≥95/90 SMD3528
Input Voltage: DC24V
Color: Warm White, Nature White, Pure White, Green, Blue
LED Qty: 240LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features of High Intensity LED Stripsundefined

 High Intensity to ensure idea brightness uniform

※ Parameters undefined



Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI95
 QL-F3528X120SAL-WW-24-S1953528240DC24V19.2W/m 10mmIP20
IP67
95Warm White2500-2700K1400-1500
 QL-F3528X120SAL-W-24-S1953000-3500K1500-1600
 QL-F3528X120SAL-N-24-S195Nature White4000-4500K1600-1700
 QL-F3528X120SAL-P-24-S195Pure White6000-7000K1700-1800
CRI90
 QL-F3528X120SAL-WW-24-S13528240DC24V19.2W/m 10mmIP20
IP67
90Warm White2500-2700K1500-1600
 QL-F3528X120SAL-W-24-S13000-3500K1600-1700
 QL-F3528X120SAL-N-24-S1Nature White4000-4500K1700-1800
 QL-F3528X120SAL-P-24-S1Pure White6000-7000K18001900
CRI80
 QL-F3528X120-VW-24-S13528240DC24V19.2W/m 10mmIP20
IP67
≥80Warm White2200-2400K1400-1450
 QL-F3528X120-WW-24-S12500-2700K1450-1500
 QL-F3528X120-W-24-S13000-3500K1500-1600
 QL-F3528X120-N-24-S1Nature White4000-4500K1500-1600
 QL-F3528X120-P-24-S1Pure White6000-7000K1650-1700
 QL-F3528X120-B-24-S1/Blue455-470400-450
 QL-F3528X120-G-24-S1Green510-5251300-1400
Remark: X is for Waterproof type. A for IP20 non-waterproof version,  C for IP67 with silicone tube

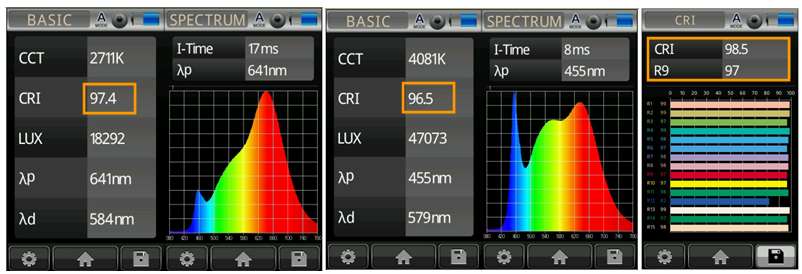

 Testing Report for Color Renderingundefined


undefined

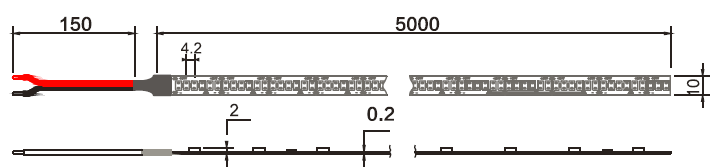

 Drawingsundefined


undefined

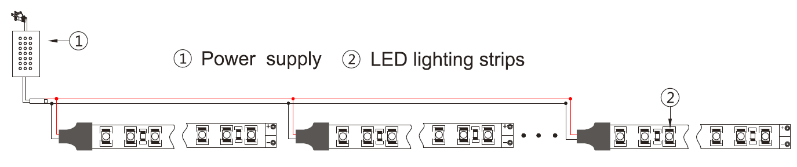

  Connectionsundefined

undefined

 Accessoriesundefined


undefined


 Different Waterproof Version
undefined


undefined

 Packing
undefined

undefined
