LED Type: CRI≥90 SMD2525
Input Voltage:DC24V
Color: Dual White (2700-6500K)
LED Qty: 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved
Comply with the European ErP Ecodesign regulation.
※ Features
Dual-White and 2LED-Cut for special application
※ Parameters
| Model No. | LED | Voltage | Cutting | CRI(Ra) | PCB Size | Water proof | Color | (CT:K) | lumen (lm/m) | Energy efficiency class |
| Power | CC/CV | |||||||||
| QL-F2525A90TSA-H-24-CES2P | 2835 180 LED/m | DC24V 15.1W/m | 11.11mm 2LED | ≥90 CV Version | 8mm | IP20 | □□ Dual White | 2700-6500K | 1350-1450 | F |
| QL-F2525C90TSA-H-24-CES2P | IP67 | |||||||||
| Remark: X is for Waterproof type. A for Non-waterproof, C for IP67 | ||||||||||

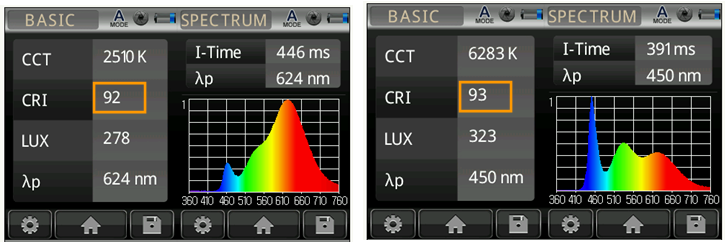

※ Testing Report for Color Rendering

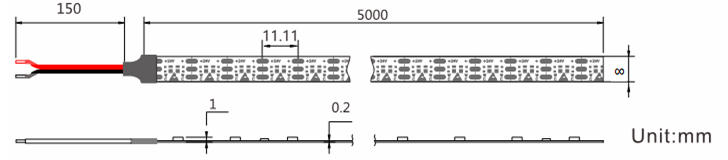

※ Drawings
※ Connections
※ Different Waterproof Version
※ Packing
