LED Type: SMD5050
Input Voltage: DC12V, DC24V
Color: Digital RGB
LED Qty: 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
IP20: Non-waterproof Version
IP20: Single-side glued
IP67: With Silicone Tube
IP68: With Silicone Glue and Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
● UCS2903 SPI RGB Digital LED Strips.
※ Parameters
| Model No. | LED Type | IC | LED Qty | Power (W/m) | Voltage CC/CV | PCB Width Cutting (mm) | Water proof | Color | λ (Nm) | lumen (lm/m) |
| QL-F5050A30-D-12-SPI | 5050 | UCS 2903 | 60LED/m 20Pixel/m | 14.4W | 12V CV | 10mm 50mm 3LEDs Cut | IP20 | ■■■RGB Digtal Color | 620-625 520-525 465-470 | 600lm |
| QL-F5050S30-D-12-SPI | IP54 | |||||||||
| QL-F5050C30-D-12-SPI | IP67 | |||||||||
| QL-F5050D30-D-12-SPI | IP68 | |||||||||
| QL-F5050A30-D-24-SPI | 5050 | UCS 2903 | 60LED/m 10Pixel/m | 14.4W | 24V CV | 10mm 100mm 6LEDs Cut | IP20 | ■■■RGB Digtal Color | 620-625 520-525 465-470 | 600lm |
| QL-F5050S30-D-24-SPI | IP54 | |||||||||
| QL-F5050C30-D-24-SPI | IP67 | |||||||||
| QL-F5050D30-D-24-SPI | IP68 |

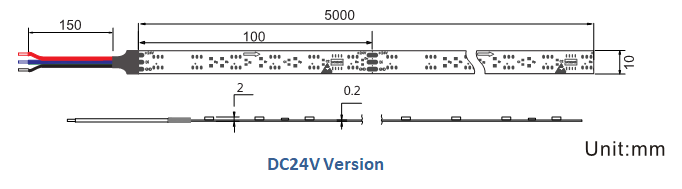

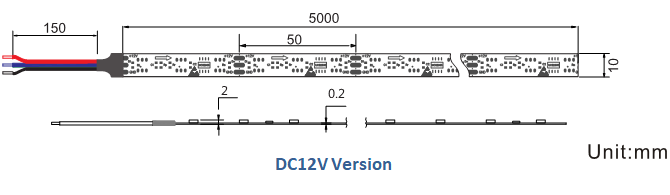

※ Drawings
※ Connections
※ Different Waterproof Version
※ Packing
