LED Type: SMD5050 with IC in LEDs
Input Voltage: DC12V
Color: Digital RGB
LED Qty: 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
IP20: Non-waterproof Version
IP20: Single-side glued
IP67: With Silicone Tube
IP68: With Silicone Glue and Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features

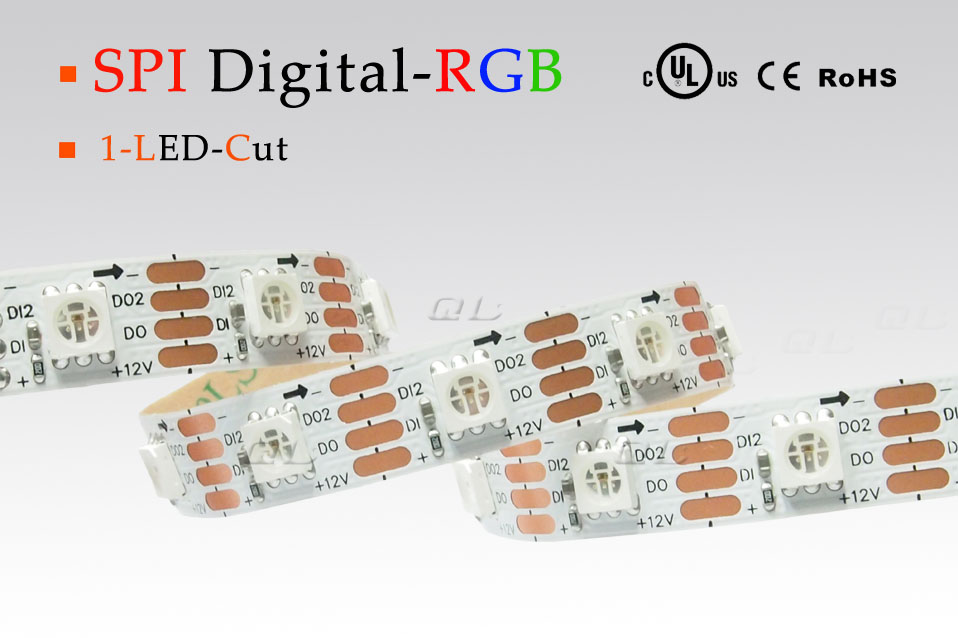

● UCS2903 SPI RGB Digital LED Strips.
● With IC inside LED, the quality is more stable.
● Each LED is cutting
※ Parameters
| Model No. | LED Type | IC | LED Qty | Power (W/m) | Voltage CC/CV | PCB Width Cutting | Water proof | Color | λ (Nm) | lumen (lm/m) |
| QL-F5050A30-D-12-1PSPI | 5050 | UCS 2903 | 60LED/m 60Pixel /m | 7.5W | 12V CV | 10mm 16.67mm 1LED Cut | IP20 | ■■■ RGB Digtal Color | 620-625 465-470 | 330lm |
| QL-F5050S30-D-12-1PSPI | IP54 | |||||||||
| QL-F5050C30-D-12-1PSPI | IP67 | |||||||||
| QL-F5050D30-D-12-1PSPI | IP68 |

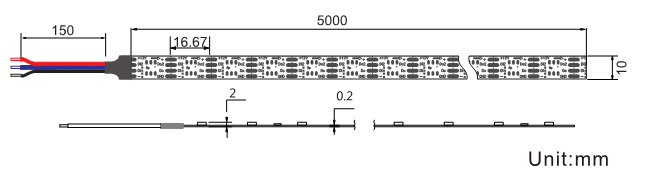

※ Drawings
※ Drawings
※ Different Waterproof Version
※ Packing
