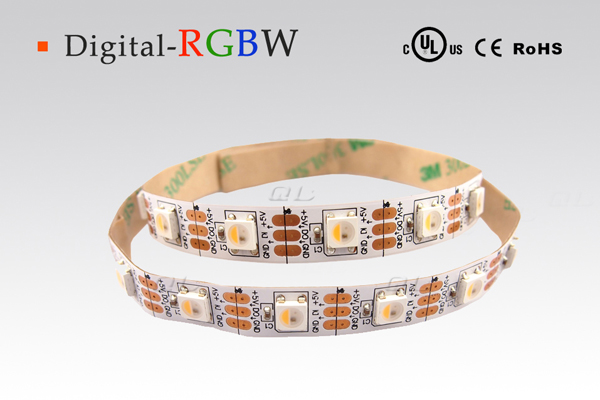

LED Type: SMD5050 with IC in LEDs
Input Voltage: DC12V
Color: Digital RGBW
LED Qty: 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
IP20: Non-waterproof Version
IP20: Single-side glued
IP67: With Silicone Tube
IP68: With Silicone Glue and Tube

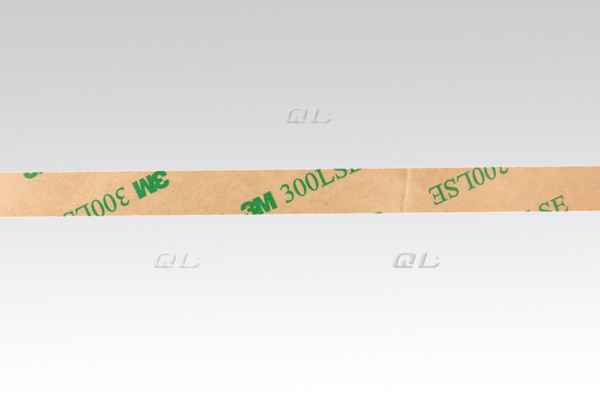

With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
● UCS2904 SPI RGBW Digital LED Strips.
● With IC inside LED, the quality is more stable.
● Each LED is cutting
※ Parameters
| Model No. | LED Type | IC | LED Qty | Power (W/m) | Voltage CC/CV | PCB Width Cutting (mm) | Water proof | Color | lumen (lm/m) |
| QL-F5050X30-DC27-12-1PSPI | 5050 | UCS 2904 | 60LED/m 60Pixel /m | 22W | 12V CV | 10mm 16.67mm 1LED Cut | IP20 IP54 IP67 IP68 | ■■■□RGB+2700K Digtal | 1100lm |
| QL-F5050X30-DC30-12-1PSPI | ■■■□RGB+3000K Digtal | 1150lm | |||||||
| QL-F5050X30-DC40-12-1PSPI | ■■■□RGB+4000K Digtal | 1200lm | |||||||
| QL-F5050X30-DC60-12-1PSPI | ■■■□RGB+6000K Digtal | 1200lm |

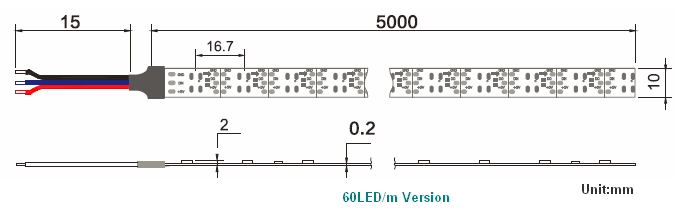

※ Drawings

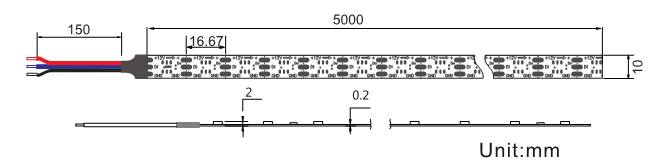

※ Drawings
※ Different Waterproof Version
※ Packing
