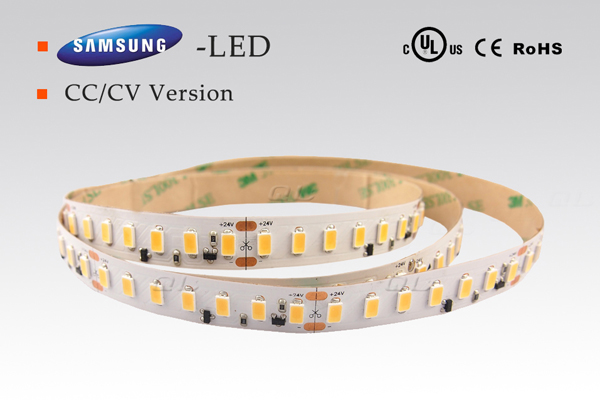

SAMSUNG 5630 LED Strips

LED Type: SAMSUNG SMD5630
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 60LED/m, 70LED/m, 126LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

 Parameters  for CC Version
undefined

Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
                                                          SAMSUNG LED   DC12V/DC24V Input Temperature Sensor Constant Current Version
QL-F5630X30-WW-12C-SG2563060DC12V14.4W/m 10mmIP20
IP67
80Warm White2700-2900K1350-1400
QL-F5630X30-W-12C-SG23000-3200K1400-1500
QL-F5630X30-N-12C-SG2Nature White4000-4500K1500-1600
QL-F5630X30-P-12C-SG2Pure White6000-7000K1600-1700
QL-F5630X35-WW-24C-SG2563070DC24V15W/m 10mmIP20
IP67
80Warm White2700-2900K1650-1700
QL-F5630X35-W-24C-SG23000-3200K1700-1800
QL-F5630X35-N-24C-SG2Nature White4000-4500K1800-1900
QL-F5630X35-P-24C-SG2Pure White6000-7000K1900-2000
QL-F5630X63-WW-24C-SG25630126DC24V22W/m 12mmIP20
IP67
80Warm White2700-2900K2300-2400
QL-F5630X63-W-24C-SG23000-3200K2400-2500
QL-F5630X63-N-24C-SG2Nature White4000-4500K2500-2600
QL-F5630X63-P-24C-SG2Pure White6000-7000K2600-2700
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube


 Parameters  for CV Version

undefined

Model No.LED  TypeLED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
                                                                          SAMSUNG LED   CRI90 Version, Constant Voltage Version
QL-F5630X30-WW-12/24-SG2563060DC12V
DC24V
14.4W/m 10mmIP20
IP67
≥80Warm White2700-2900K1350-1400
QL-F5630X30-W-12/24-SG23000-3200K1400-1500
QL-F5630X30-N-12/24-SG2Nature White4000-4500K1500-1600
QL-F5630X30-P-12/24-SG2Pure White6000-7000K1600-1700
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

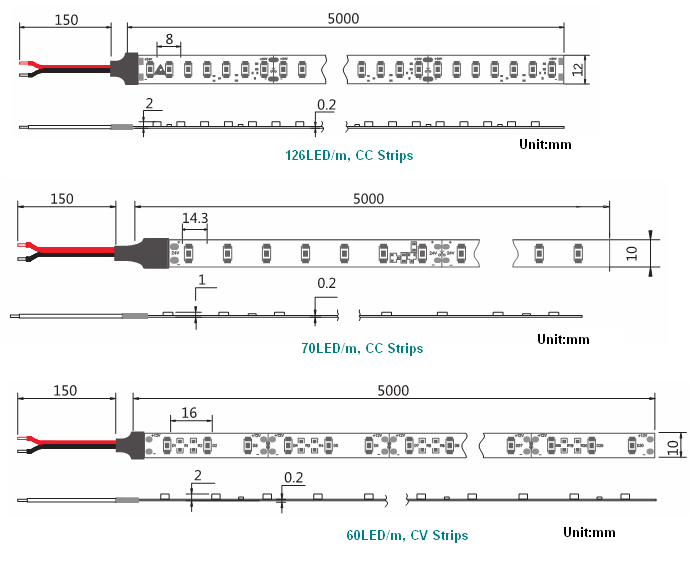

 Drawingsundefined

undefined

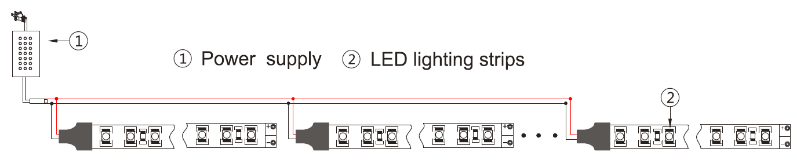

 Connectionsundefined

undefined

 Accessories
undefined


undefined

 Different Waterproof Versionundefined


undefined

 Packing
undefined

undefined
