LED Type: SMD5050
Input Voltage: DC12V/DC24V
Color: Grow Light
LED Qty: 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features

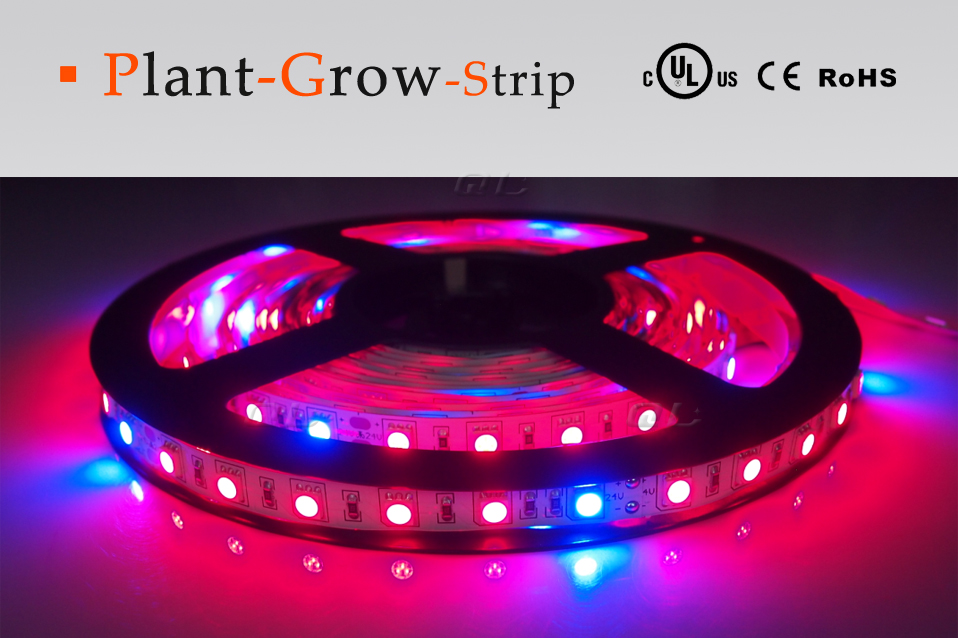

Special Light for Plant Grow
※ Picture of Wave Length
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| QL-F5050A30-R4B1-12/24 | 5050 | 60 | DC24V DC12V | 14.4W/m | 12mm | IP20 | Grow Light R:B=4:1 | Red:660-665nm Blue: 450-455nm | 330lm |
| QL-F5050C30-R4B1-12/24 | IP67 | ||||||||
| QL-F5050A30-R5B1-12/24 | 5050 | 60 | DC24V DC12V | 14.4W/m | 12mm | IP20 | Grow Light R:B=5:1 | Red:660-665nm Blue: 450-455nm | 340lm |
| QL-F5050C30-R5B1-12/24 | IP67 | ||||||||
| QL-F5050A30-R9B1-12/24 | 5050 | 60 | DC24V DC12V | 14.4W/m | 12mm | IP20 | Grow Light R:B=9:1 | Red:660-665nm Blue: 450-455nm | 350lm |
| QL-F5050C30-R9B1-12/24 | IP67 | ||||||||
| Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube | |||||||||

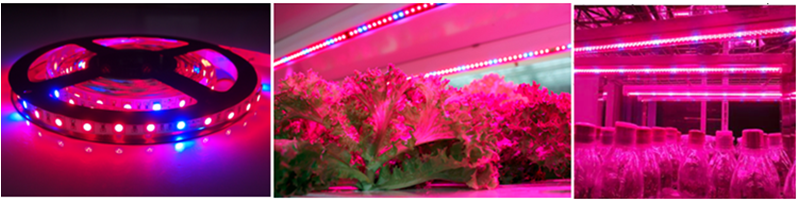

※ Application Picture

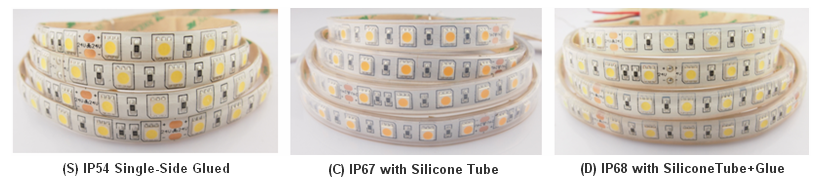

※ Different Waterproof Version

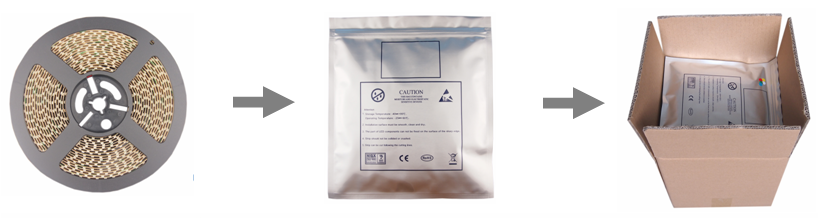

※ Packing
Remark: Each reel will be packed in an antistatic bag and then to a box. Every four small boxes to a big box, if required
