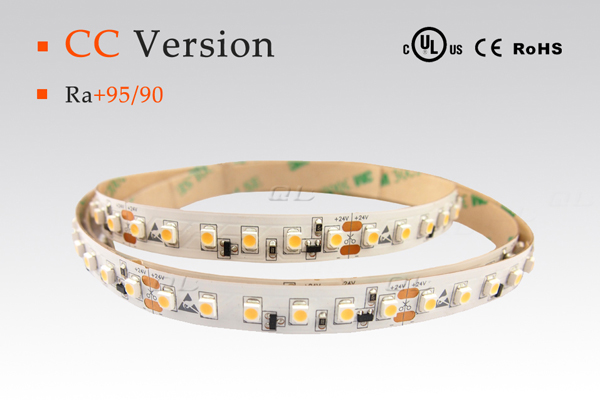

Ra+95/90 3528 CC LED Strips

LED Type: CRI≥90(80) SMD3528
2. Input Voltage: DC12V/DC24V (with temperature sensor)
3. Color: White, Red, Green, Blue, Yellow
4. LED Qty: 60LED/m, 78LED/m, 120LED/m
5. Beam Angle: 120 degree
6. IP Ratio: IP20, IP54, IP67, IP68 Version
7. With 3M 300 strong adhesive tape

 Featuresundefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input


※ Parameters  for CRI≥95 CC Versionundefined


Model No.LED
 Type
LED
Qty
(pcs)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI95, DC24V Input Temperature Sensor Constant Current Version
QL-F3528X114SAL-P-24C-953528228DC24V18W/m 12mmIP20
IP54
IP67
IP68
95Pure White6000-7000K1600-1700
QL-F3528X114SAL-N-24C-95Nature White4000-4500K1500-1600
QL-F3528X114SAL-W-24C-95Warm White3000-3500K1400-1500
QL-F3528X114SAL-WW-24C-952500-2700K1300-1400
QL-F3528X60SA-P-24C-953528120DC24V14.4W/m 10mmIP20
IP54
IP67
IP68
≥95Pure White6000-7000K1200-1300
QL-F3528X60SA-N-24C-95Nature White4000-4500K1100-1200
QL-F3528X60SA-W-24C-95Warm White3000-3500K1000-1100
QL-F3528X60SA-WW-24C-952500-2700K950-1000
QL-F3528X30SA-P-24C-95352860DC24V7.2W/m 10mmIP20
IP54
IP67
IP68
≥95Pure White6000-7000K600-650
QL-F3528X30SA-N-24C-95Nature White4000-4500K550-600
QL-F3528X30SA-W-24C-95Warm White3000-3500K500-550
QL-F3528X30SA-WW-24C-952500-2700K500-530
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue


 Parameters  for CRI≥90 CC Versionundefined


Model No.LED
 Type
LED
Qty
(pcs)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90, DC24V Input Temperature Sensor Constant Current Version
QL-F3528X114SAL-P-24C3528228DC24V18W/m 12mmIP20
IP54
IP67
IP68
95Pure White6000-7000K1700-1800
QL-F3528X114SAL-N-24CNature White4000-4500K1600-1700
QL-F3528X114SAL-W-24CWarm White3000-3500K1500-1600
QL-F3528X114SAL-WW-24C2500-2700K1400-1500
QL-F3528X60SA-P-24C3528120DC24V14.4W/m 10mmIP20
IP54
IP67
IP68
95Pure White6000-7000K1300-1400
QL-F3528X60SA-N-24CNature White4000-4500K1200-1300
QL-F3528X60SA-W-24CWarm White3000-3500K1100-1200
QL-F3528X60SA-WW-24C2500-2700K1000-1100
QL-F3528X30SA-P-24C352860DC24V7.2W/m 10mmIP20
IP54
IP67
IP68
95Pure White6000-7000K650-700
QL-F3528X30SA-N-24CNature White4000-4500K600-650
QL-F3528X30SA-W-24CWarm White3000-3500K550-600
QL-F3528X30SA-WW-24C2500-2700K500-550
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue

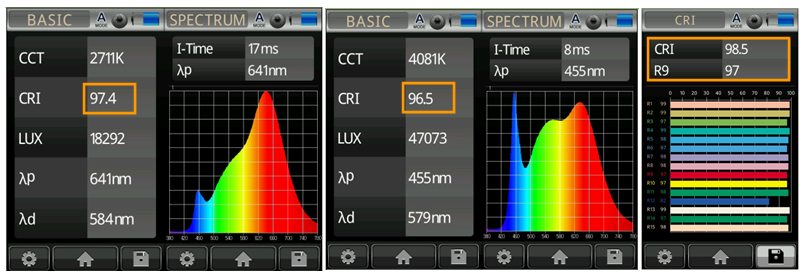

 Testing Report for Color Renderingundefined


undefined


 Drawingsundefined

undefined


 Connections
undefined


undefined


 Accessories

undefined


undefined

 Different Waterproof Version
undefined


undefined


 Packing
undefined

undefined
