LED Type:CRI≥95SMD3528
Input Voltage: DC12V, DC24V
Color: Warm White, Nature White, Pure White, Green, Blue
LED Qty: 60LED/m, 120LED/m
Beam Angle: 120 degree

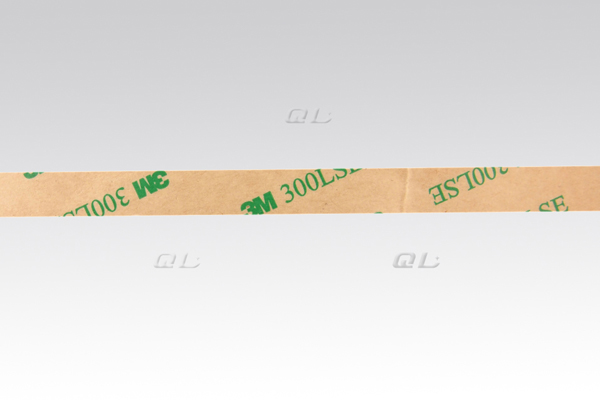

With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
Features of 5mm LED Strips
Small width suitable for special small size space
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | CRI | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| QL-F3528A30SA-P-12/24-595 | 3528 | 60 | DC12V DC24V | 4.8W/m | 5mm | IP20 | ≥95 | Pure White | 6000-7000K | 400-450 |
| QL-F3528A30SA-N-12/24-595 | Nature White | 4000-4500K | 370-400 | |||||||
| QL-F3528A30SA-W-12/24-595 | Warm White | 3000-3500K | 340-370 | |||||||
| QL-F3528A30SA-WW-12/24-595 | 2500-2700K | 320-340 | ||||||||
| QL-F3528A60SA-P-12/24-595 | 3528 | 120 | DC12V DC24V | 9.6W/m | 5mm | IP20 | ≥95 | Pure White | 6000-7000K | 800-900 |
| QL-F3528A60SA-N-12/24-595 | Nature White | 4000-4500K | 740-800 | |||||||
| QL-F3528A60SA-W-12/24-595 | Warm White | 3000-3500K | 680-740 | |||||||
| QL-F3528A60SA-WW-12/24-595 | 2500-2700K | 660-680 |

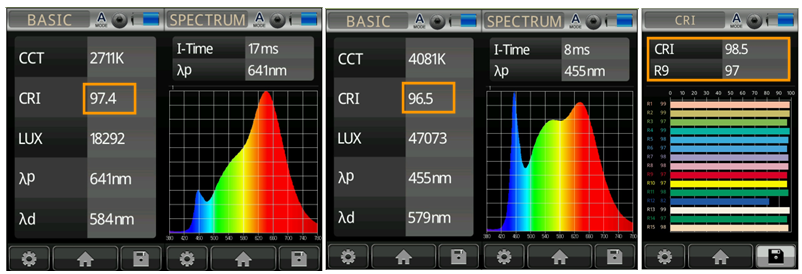

※ Testing Report for Color Rendering

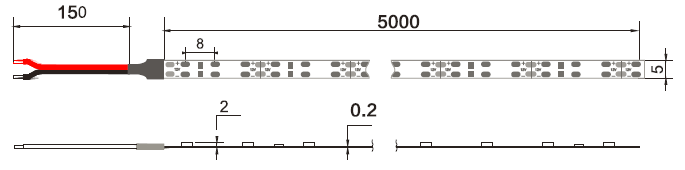

※ Drawings
※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
