LED Type:CRI≥90 SMD3528
Input Voltage: DC12V, DC24V
Color: Warm White, Nature White, Pure White, Green, Blue
LED Qty: 60LED/m, 120LED/m
Beam Angle: 120 degree
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
Features of 5mm LED Strips
Small width suitable for special small size space
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | CRI | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| QL-F3528A30SAL-P-12/24-5 | 3528 | 60 | DC12V DC24V | 4.8W/m | 5mm | IP20 | ≥90 | Pure White | 6000-7000K | 450-500 |
| QL-F3528A30SAL-N-12/24-5 | Nature White | 4000-4500K | 430-450 | |||||||
| QL-F3528A30SAL-W-12/24-5 | Warm White | 3000-3500K | 410-420 | |||||||
| QL-F3528A30SAL-WW-12/24-5 | 2500-2700K | 380-410 | ||||||||
| QL-F3528A60SAL-P-12/24-5 | 3528 | 120 | DC12V DC24V | 9.6W/m | 5mm | IP20 | ≥90 | Pure White | 6000-7000K | 900-1000 |
| QL-F3528A60SAL-N-12/24-5 | Nature White | 4000-4500K | 850-900 | |||||||
| QL-F3528A60SAL-W-12/24-5 | Warm White | 3000-3500K | 800-850 | |||||||
| QL-F3528A60SAL-WW-12/24-5 | 2500-2700K | 750-700 |

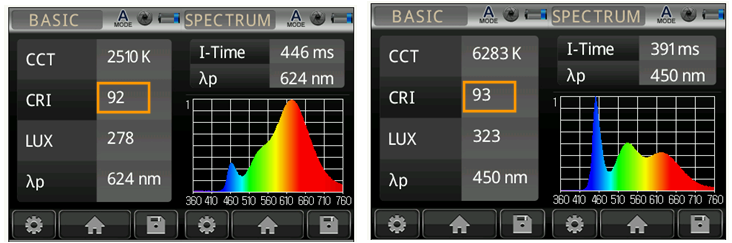

※ Testing Report for Color Rendering

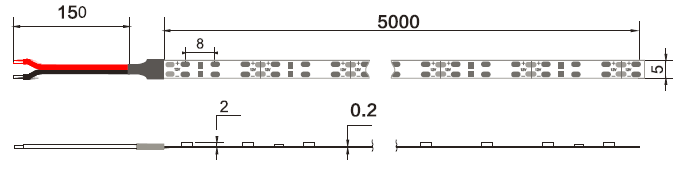

※ Drawings
※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
