LED Type: Super Quality SMD3528
Input Voltage: DC24V
Color: Warm White, Nature White, Pure White, Green, Blue
LED Qty: 60LED/m, 120LED/m
Beam Angle: 120 degree
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features

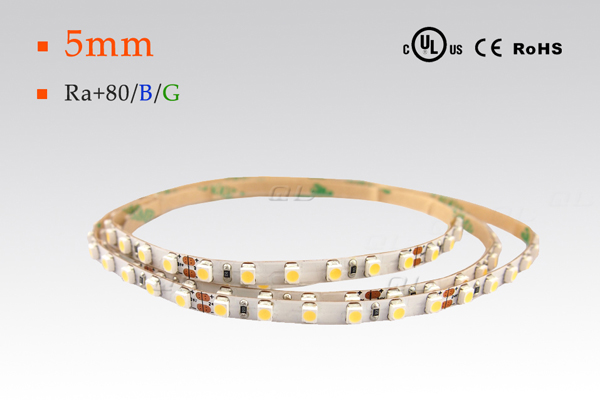

Features of 5mm LED Strips
Small width suitable for special small size space
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | CRI | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| QL-F3528A30-B-12/24-5 | 3528 | 60 | DC12V DC24V | 4.8W/m | 5mm | IP20 | ≥80 | Blue | 455-470 | 100-110 |
| QL-F3528A30-G-12/24-5 | Green | 510-525 | 300-350 | |||||||
| QL-F3528A30-P-12/24-5 | Pure White | 6000-7000K | 400-430 | |||||||
| QL-F3528A30-N-12/24-5 | Nature White | 4000-4500K | 370-400 | |||||||
| QL-F3528A30-W-12/24-5 | Warm White | 3000-3500K | 350-370 | |||||||
| QL-F3528A30-WW-12/24-5 | 2500-2700K | 330-350 | ||||||||
| QL-F3528A30-VW-12/24-5 | 2200-2400K | 300-330 | ||||||||
| QL-F3528A60-B-12/24-5 | 3528 | 120 | DC12V DC24V | 9.6W/m | 5mm | IP20 | / | Blue | 455-470 | 200-220 |
| QL-F3528A60-G-12/24-5 | Green | 510-525 | 600-700 | |||||||
| QL-F3528A60-P-12/24-5 | ≥80 | Pure White | 6000-7000K | 800-850 | ||||||
| QL-F3528A60-N-12/24-5 | Nature White | 4000-4500K | 750-800 | |||||||
| QL-F3528A60-W-12/24-5 | Warm White | 3000-3500K | 720-750 | |||||||
| QL-F3528A60-WW-12/24-5 | 2500-2700K | 700-720 | ||||||||
| QL-F3528A60-VW-12/24-5 | 2200-2400K | 680-700 |

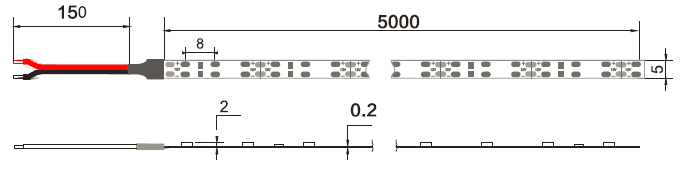

※ Drawings
※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
