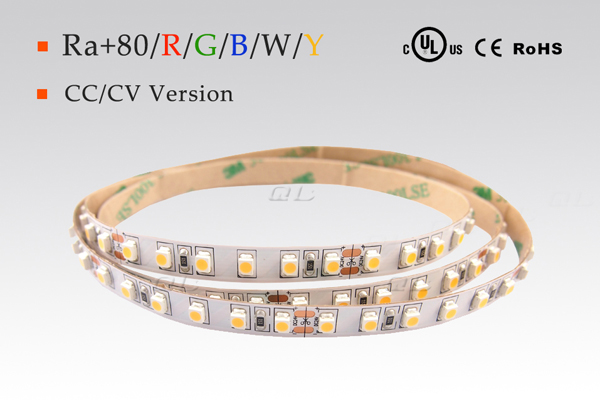

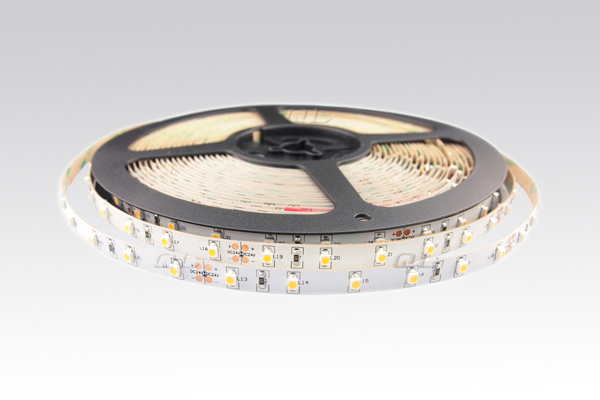

Colored 3528 LED Strips

LED Type: High Quality SMD3528
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: White, Red, Green, Blue, Yellow
LED Qty: 60LED/m, 120LED/m, 228LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters  for CC Versionundefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
DC24V Input Temperature Sensor Constant Current Version
QL-F3528X114-P-24C3528228DC24V18W/m 12mmIP20
IP54
IP67
IP68
80Pure White6000-7000K1500-1600
QL-F3528X114-N-24CNature White4000-4500K1400-1500
QL-F3528X114-W-24CWarm White3000-3500K1350-1400
QL-F3528X114-WW-24C2500-2700K1300-1350
QL-F3528X114-VW-24C2200-2400K1250-1300
QL-F3528X114-B-24CBlue455-470400-420
QL-F3528X114-G-24CGreen510-5251200-1300
QL-F3528X60-P-24CSMD3528120DC24V9.6W/m10mmIP20
IP54
IP67
IP68
80Pure White6000-7000K800-850
QL-F3528X60-N-24CNature White4000-4500K750-800
QL-F3528X60-W-24CWarm White3000-3500K720-750
QL-F3528X60-WW-24C2500-2700K700-720
QL-F3528X60V-W-24C2200-2400K680-700
QL-F3528X60-B-24CBlue455-470200-220
QL-F3528X60-G-24CGreen510-525600-700
QL-F3528X30-P-24CSMD352860DC24V4.8W/m10mmIP20
IP54
IP67
IP68
80Pure White6000-7000K400-430
QL-F3528X30-N-24CNature White4000-4500K370-400
QL-F3528X30-W-24CWarm White3000-3500K350-370
QL-F3528X30-WW-24C2500-2700K330-350
QL-F3528X30-VW-24C2200-2400K300-330
QL-F3528X30-B-24CBlue455-470100-110
QL-F3528X30-G-24CGreen510-525300-350
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue


 Parameters  for CV Versionundefined



Model No.LED
 Type
LED Qty (m)Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
                                                                                                             Constant Voltage Version
QL-F3528X60-P-12/243528120DC12V
DC24V
9.6W/m10mmIP20
IP54
IP67
IP68
80Pure White6000-7000K800-850
QL-F3528X60-N-12/24Nature White4000-4500K750-800
QL-F3528X60-W-12/24Warm White3000-3500K720-750
QL-F3528X60-WW-12/24Warm White2500-2700K700-720
QL-F3528X60-VW-12/24Warm White2200-2400K680-700
QL-F3528X60-R-12/24Red620-630300-350
QL-F3528X60-Y-12/24Yellow585-595300-350
QL-F3528X60-B-12/24Blue455-470200-220
QL-F3528X60-G-12/24Green510-525600-700
QL-F3528X30-P-12/24352860DC12V
DC24V
4.8W/m10mmIP20
IP54
IP67
IP68
80Pure White6000-7000K400-430
QL-F3528X30-N-12/24Nature White4000-4500K370-400
QL-F3528X30-W-12/24Warm White3000-3500K350-370
QL-F3528X30-WW-12/24Warm White2500-2700K330-350
QL-F3528X30-VW-12/24Warm White2200-2400K300-330
QL-F3528X30-R-12/24Red620-630300-350
QL-F3528X30-Y-12/24Yellow585-595300-350
QL-F3528X30-B-12/24Blue455-470100-110
QL-F3528X30-G-12/24Green510-525300-350
Remark:      X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone,
                  C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue



 Drawings

undefined

undefined

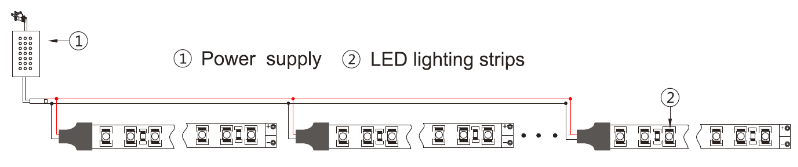

 Connections
undefined


undefined

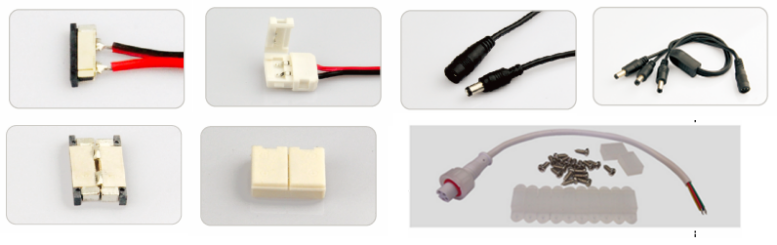

 Accessories

undefined


undefined

 Different Waterproof Version

undefined


undefined


 Packing
