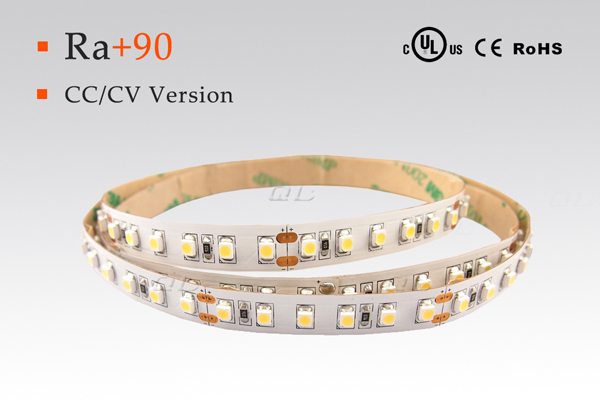

prevnext: Ra+90 3528 LED Strips

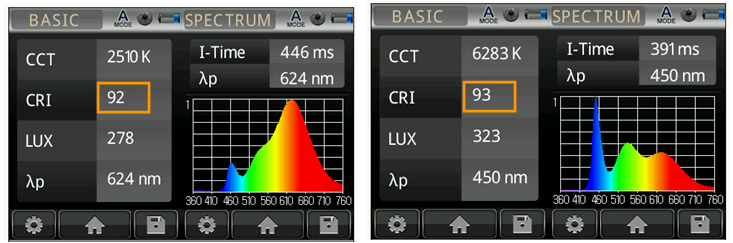

LED Type: CRI≥90 SMD3528
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: White, Red, Green, Blue, Yellow
LED Qty: 60LED/m, 78LED/m, 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version

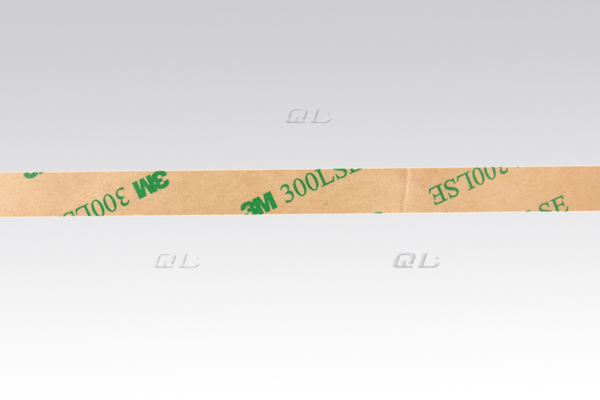

With 3M 300 strong adhesive tape

Inquiry Wow Customer Question

※ Features

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters for CC Version

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥90, DC24V Input Temperature Sensor Constant Current Version
QL-F3528X114SAL-P-24C	3528	228	DC24V	18W/m	12mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	1700-1800
QL-F3528X114SAL-N-24C								Nature White	4000-4500K	1600-1700
QL-F3528X114SAL-W-24C								Warm White	3000-3500K	1500-1600
QL-F3528X114SAL-WW-24C									2500-2700K	1400-1500
QL-F3528X60SA-P-24C	3528	120	DC24V	14.4W/m	10mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	1300-1400
QL-F3528X60SA-N-24C								Nature White	4000-4500K	1200-1300
QL-F3528X60SA-W-24C								Warm White	3000-3500K	1100-1200
QL-F3528X60SA-WW-24C									2500-2700K	1000-1100
QL-F3528X30SA-P-24C	3528	60	DC24V	7.2W/m	10mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	650-700
QL-F3528X30SA-N-24C								Nature White	4000-4500K	600-650
QL-F3528X30SA-W-24C								Warm White	3000-3500K	550-600
QL-F3528X30SA-WW-24C									2500-2700K	500-550
Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue

※ Parameters for CV Version

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥90, Constant Voltage Version
QL-F3528X60SA-P-12/24	3528	120	DC12V DC24V	14.4W/m	10mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	1300-1400
QL-F3528X60SA-N-12/24								Nature White	4000-4500K	1200-1300
QL-F3528X60SA-W-12/24								Warm White	3000-3500K	1100-1200
QL-F3528X60SA-WW-12/24									2500-2700K	1000-1100
QL-F3528X39SA-P-12/24	3528	78	DC12V DC24V	9.4W/m	8mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	850-900
QL-F3528X39SA-N-12/24								Nature White	4000-4500K	800-850
QL-F3528X39SA-W-12/24								Warm White	3000-3500K	750-800
QL-F3528X39SA-WW-12/24									2500-2700K	700-750
QL-F3528X30SA-P-12/24	3528	60	DC12V DC24V	7.2W/m	10mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	650-700
QL-F3528X30SA-N-12/24								Nature White	4000-4500K	600-650
QL-F3528X30SA-W-12/24								Warm White	3000-3500K	550-600
QL-F3528X30SA-WW-12/24									2500-2700K	500-550
Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue
