LED Type: SMD5050
Input Voltage: DC24V
Color: Red+Warm White+Pure White
LED Qty:30LED/m, 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version

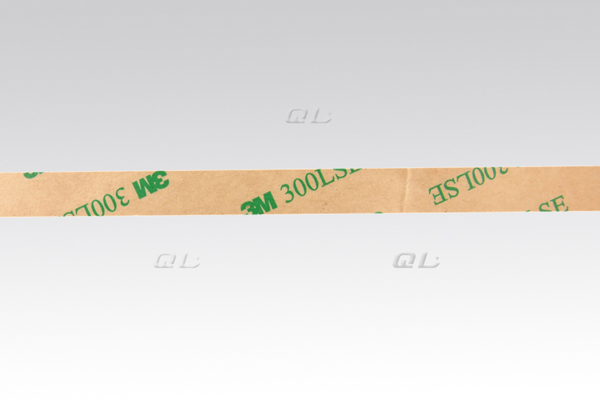

With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features of CCT Adjustable Strips
With Fresh Food Lighting Strips, the foods looks more fresh
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| QL-F5050A15-F-12/24 | 5050 | 30 | DC12V DC24V | 7.2W/m | 10mm | IP20 | Warm White Pure White Red | 2500-2700 6000-6500 620-630 | 400-500 |
| QL-F5050S15-F-12/24 | IP54 | ||||||||
| QL-F5050C15-F-12/24 | IP67 | ||||||||
| QL-F5050D15-F-12/24 | IP68 | ||||||||
| QL-F5050A30-F-12/24 | 5050 | 60 | DC12V DC24V | 14.4W/m | 10mm | IP20 | Warm White Pure White Red | 2500-2700 6000-6500 620-630 | 800-1000 |
| QL-F5050S30-F-12/24 | IP54 | ||||||||
| QL-F5050C30-F-12/24 | IP67 | ||||||||
| QL-F5050D30-F-12/24 | IP68 |
※ Drawings

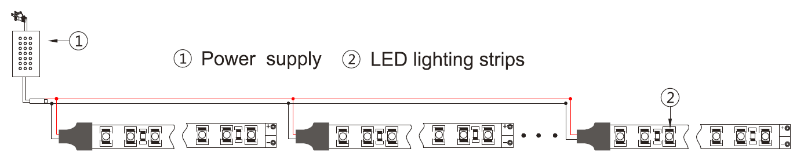

※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
