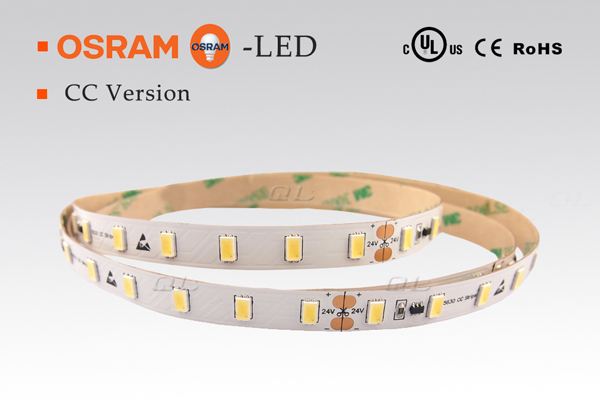

OSRAM 5630 LED Strips

LED Type: OSRAM SMD5630
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 60LED/m, 70LED/m, 126LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

 Parametersundefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
OSRAM LED, Temperature Sendor Constant Current Version
QL-F5630A35-WW-24CC-OR563070DC24V15W/m 10mmIP2080Warm White2700-2900K1650-1700
QL-F5630A35-W-24CC-OR3000-3200K1700-1800
QL-F5630A35-N-24CC-ORNature White4000-4500K1800-1900
QL-F5630A35-P-24CC-ORPure White6000-7000K1900-2000
QL-F5630C35-WW-24CC-OR563070DC24V15W/m 10mmIP6780Warm White2700-2900K1650-1700
QL-F5630C35-W-24CC-OR3000-3200K1700-1800
QL-F5630C35-N-24CC-ORNature White4000-4500K1800-1900
QL-F5630C35-P-24CC-ORPure White6000-7000K1900-2000

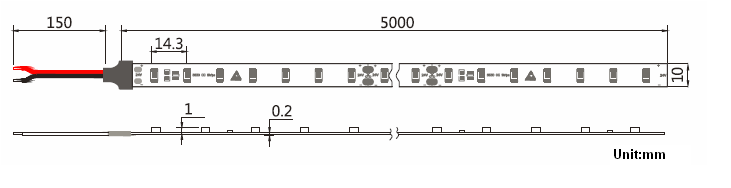

 Drawingsundefined

undefined

 Connections
undefined

undefined

 Accessories
undefined


undefined

 Different Waterproof Version
undefined

undefined

 Packing
undefined

undefined
