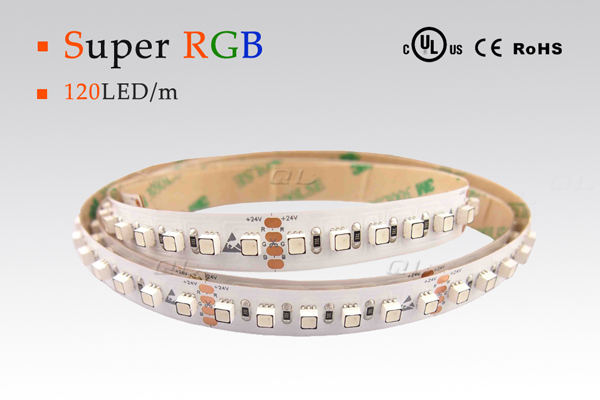

LED Type: Super Bright SMD3535
Input Voltage: DC24V
Color: RGB
LED Qty: 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20,IP67
With 3M 300 strong adhesive tape on t
※ Parameters for CC Version
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| DC24V Input Temperature Sensor Constant Current Version | |||||||||
| QL-F3535A60-C-24 | 3535 | 120 | DC24V | 28.8W/m | 12mm | IP20 | RGB | R:620-625nm | 1400-1500 |
| G:520-525nm | |||||||||
| B:465-470nm | |||||||||

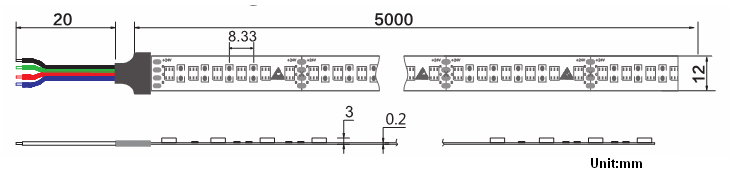

※ Drawings

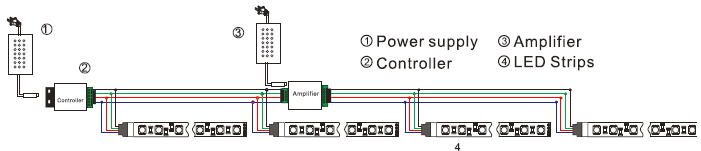

※ Connections of RGB-Color

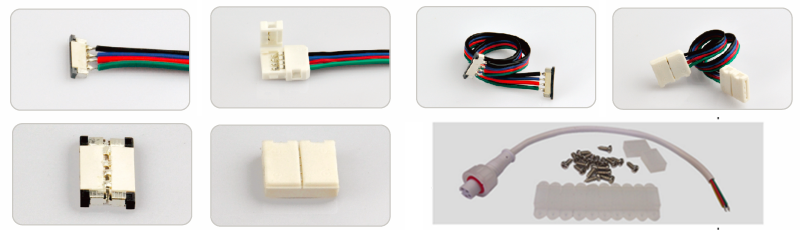

※ Accessories of RGB-Color
※ Packing
