LED Type: Super Quality SMD5050
Input Voltage: DC12V/DC24V
Color: RGB Warm White, RGB Nature White, RGB Pure White and
RGB Amber
LED Qty: 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

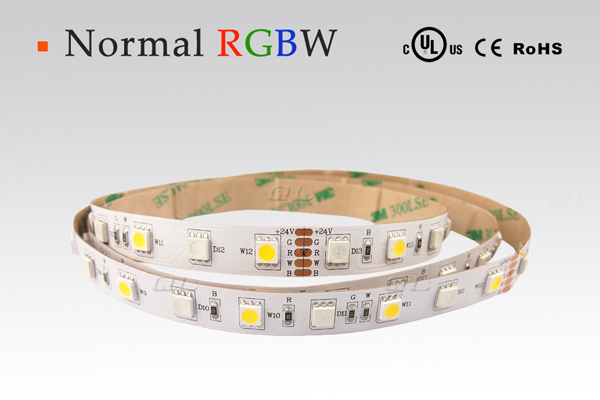

※ Features of RGBX Strips
RGBW strips, you enjoy idea white color and RGB color with one same strips
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | Color | Lumen (lm/m) | |
| CRI≥90 Version | |||||||||
| QL-F5050A30SA-CP-12/24 | 5050 | 60/m | DC12V DC24V | 14.4W/m | 12mm | IP20 | R: 620-630 G: 455-470 B: 510-525 A: 585-595 PW: 6000-6500K NW: 4000-4500K WW: 2500-2700K | 700-900 | |
| QL-F5050A30SA-CN-12/24 | |||||||||
| QL-F5050A30SA-CW-12/24 | |||||||||
| QL-F5050A30SA-CWW-12/24 | |||||||||
| Normal CRI Version | |||||||||
| QL-F5050A30-CP-12/24 | 5050 | 60/m | DC12V DC24V | 14.4W/m | 12mm | IP20 | R: 620-630 G: 455-470 B: 510-525 A: 585-595 PW: 6000-6500K NW: 4000-4500K WW: 2500-2700K | 700-900 | |
| QL-F5050A30-CN-12/24 | |||||||||
| QL-F5050A30-CW-12/24 | |||||||||
| QL-F5050A30-CWW-12/24 | |||||||||
| QL-F5050A30-CVW-12/24 | |||||||||
| QL-F5050A30-CY-12/24 | |||||||||
| Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue | |||||||||

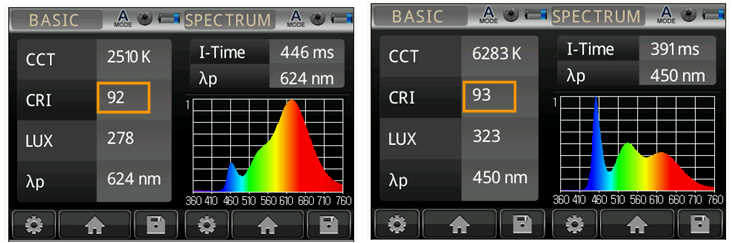

※ Testing Report for Color Rendering

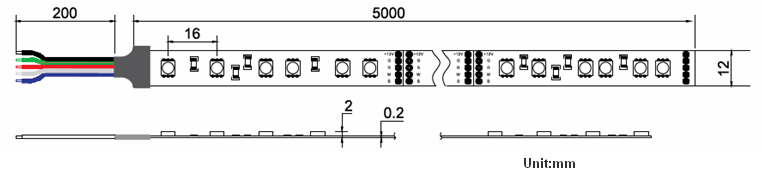

※ Drawings
※ Different Waterproof Version
※ Packing
