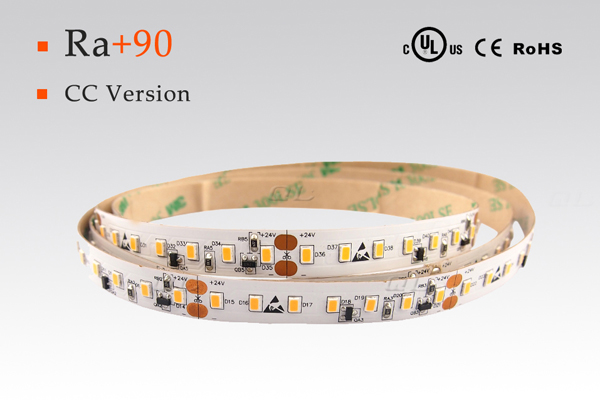

Ra+90 3020 LED Strips

LED Type: CRI≥90 SMD3020
Input Voltage: DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 70LED/m, 126LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

 Parameters
undefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90, DC24V Input Temperature Sensor Constant Current Version
QL-F3020A35SA-WW-24C302070DC24V15W/m 8mmIP20
IP67
90Warm White2500-2700K1150-1200
QL-F3020A35SA-W-24C3000-3500K1200-1300
QL-F3020A35SA-N-24CNature White4000-4500K1300-140
QL-F3020A35SA-P-24CPure White6000-7000K1400-1500
QL-F3020A63SA-WW-24C3020126DC24V22W/m 10mmIP20
IP67
90Warm White2500-2700K1850-1900
QL-F3020A63SA-W-24C3000-3500K1900-2000
QL-F3020A63SA-N-24CNature White4000-4500K2000-2100
QL-F3020A63SA-P-24CPure White6000-7000K2100-2200
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube


 Testing Report for Color Renderingundefined


undefined

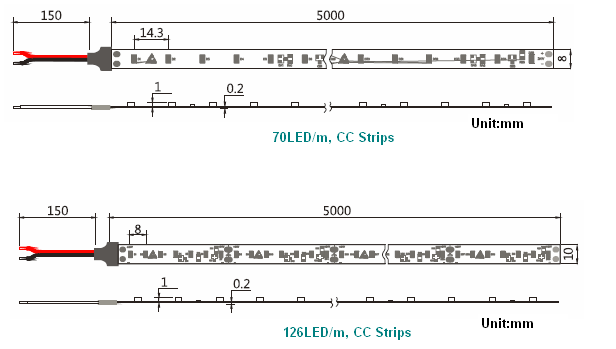

 Drawingsundefined

undefined

 Connections
undefined


undefined

 Accessories
undefined


undefined

 Different Waterproof Version
undefined


undefined

 Packing
undefined
