Dimension: 300x600, 600x600
Power: 23W
LED: SMD5050
LED Qty: 96pcs
Voltage: DC24V
※ Features
Features of QL Temperature Sensor Constant Current Strips:
● Can be working with DC24V power supply directly
● Can be working with any DC24V PWM control system or dimmer, such as DMX512, Dali, RF, 0-10V, etc. The application is very conveniently
● Made with Super bright SMD5050
● 6mm Light guide to ensure uniform brightness.
● Super quality aluminum body ensures super heat dissipation.
● Very thin body only 12.7mm.
※ Parameters
| Model No. | Size (mm) | Color | CT/K | LED Type | LED Qty | Power | Voltage | Lumen | CRI |
| QL-PL300X600C-DB | 295*595 | RGB | / | 5050 | 96 | 23W | DC24V | R: 240lm G: 432lm B: 115lm | / |
| QL-PL600X600C-DB | 595*595 | 96 | 23W | DC24V |

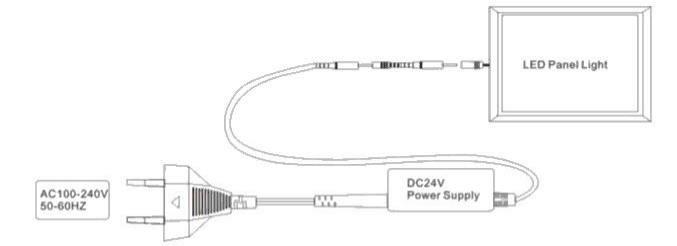

※ Connection

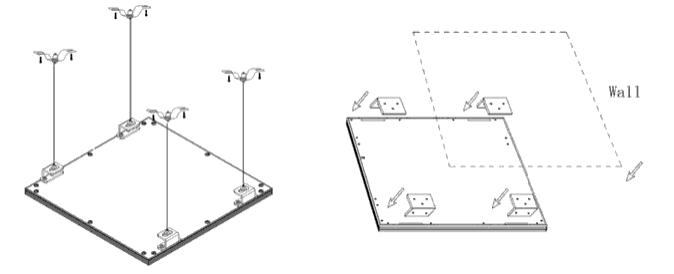

※ Installation
※ Applications
● Hotels, conference, meetings rooms.
● Factories Offices
● Commercial Purpose
● Residential/Institution Buildings
● Schools, Colleague, Universities, Hospitals
● Call centers, shopping malls and exhibition Hall and other public places
● Exhibition halls, art galleries, museums, offices, reading rooms, contour range.
