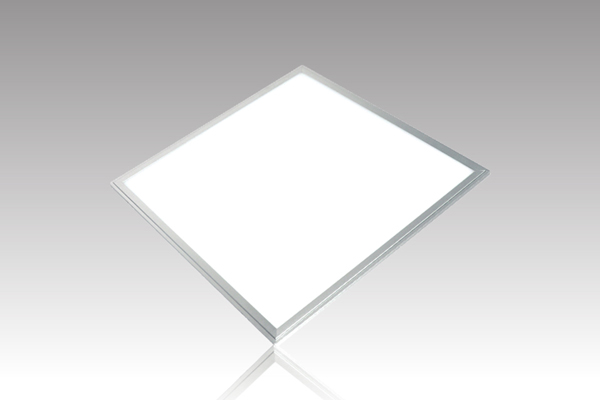

With Temperature Sensor
Dimension: 300x300, 300x600, 300x1200, 600x600
Power: 11W/ 21W/ 42W
LED: CRI90 SMD2835
Color: Warm White, Nature White, Pure White
Color Rendering: CRI(Ra)≥90
With inside constant current driver with temperature sensor
※ Features
Features of QL Temperature Sensor Constant Current Strips:
● Constant current version but with constant voltage input.
● Can be working with DC24V power supply directly
● Can be working with any DC24V PWM control system or dimmer, such as DMX512, Dali, RF, 0-10V, etc. The application is very conveniently
● CRI(Ra)≥90
● Made with Super bright SMD2835 LED
● High accurate constant current driver with very stable quality.
● Super quality aluminum body ensures super heat dissipation.
※ Parameters
| Model No. | Size (mm) | Color | CT/K | LED Type | LED Qty | Power | Voltage | Lumen | CRI |
| QL-PL300X300P-DC | 295*295 | Pure White | 5500-6000K | 2835 | 56 | 11W | DC24V | 800lm±10% | ≥90 |
| QL-PL300X300N-DC | Nature White | 4000-4500K | |||||||
| QL-PL300X300W-DC | Warm White | 2700-2900K | |||||||
| QL-PL300X600P-DC | 295*595 | Pure White | 5500-6000K | 2835 | 112 | 21W | DC24V | 1700lm±10% | ≥90 |
| QL-PL300X600N-DC | Nature White | 4000-4500K | |||||||
| QL-PL300X600W-DC | Warm White | 2700-2900K | |||||||
| QL-PL600X600P4-DC | 595*595 | Pure White | 5500-6000K | 2835 | 224 | 42W | DC24V | 3400lm±10% | ≥90 |
| QL-PL600X600N4-DC | Nature White | 4000-4500K | |||||||
| QL-PL600X600W4-DC | Warm White | 2700-2900K | |||||||
| QL-PL300X1200P-DC | 295*1195 | Pure White | 5500-6000K | 2835 | 224 | 42W | DC24V | 3400lm±10% | ≥90 |
| QL-PL300X1200N-DC | Nature White | 4000-4500K | |||||||
| QL-PL300X1200W-DC | Warm White | 2700-2900K |

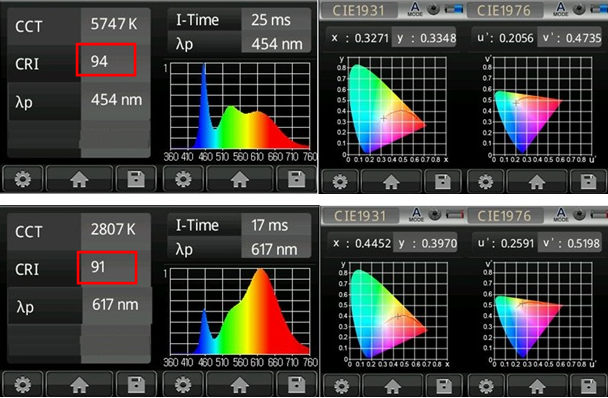

※ Light Source Test Report:

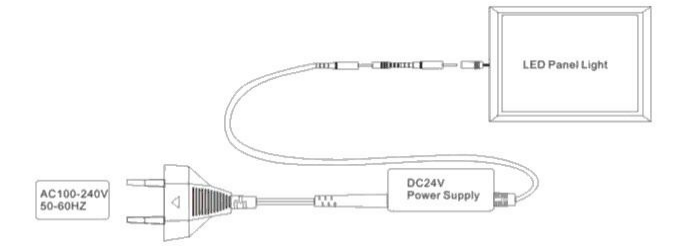

※ Connection

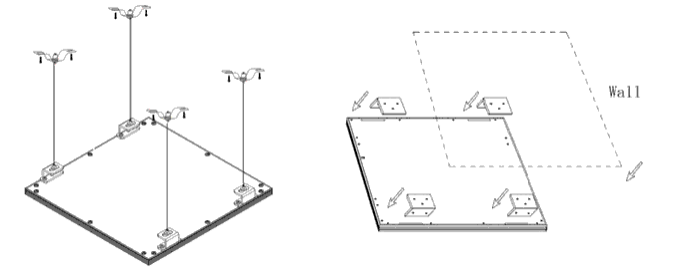

※ Installation
※ Applications
● Hotels, conference, meetings rooms.
● Factories Offices
● Commercial Purpose
● Residential/Institution Buildings
● Schools, Colleague, Universities, Hospitals
● Call centers, shopping malls and exhibition Hall and other public places
● Exhibition halls, art galleries, museums, offices, reading rooms, contour range.
