LED Type: SMD3528
Input Voltage: DC12V/DC24V
Color: Grow Light
LED Qty: 60LED/m,120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
Infrared Light for special use
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| QL-F3528A30-IR-12/24 | 3528 | 60 | DC24V DC12V | 4.8W/m | 10mm | IP20 | Infrared | 840-845nm | 330lm |
| QL-F3528C30-IR-12/24 | IP67 | ||||||||
| QL-F3528A60-IR-12/24 | 3528 | 120 | DC24V DC12V | 9.6W/m | 10mm | IP20 | Infrared | 840-845nm | 340lm |
| QL-F3528C60-IR-12/24 | IP67 | ||||||||
| Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube | |||||||||

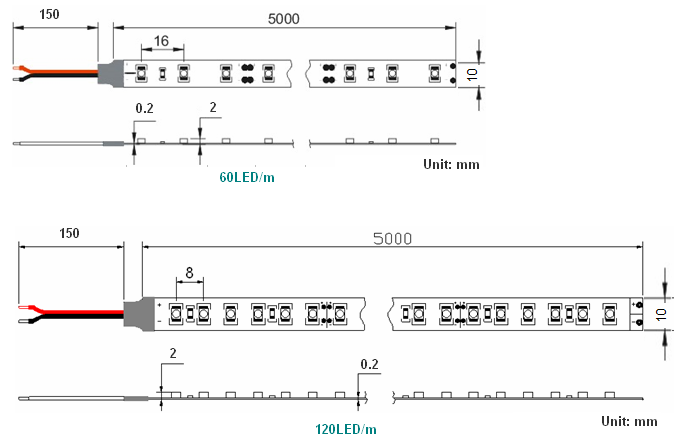

※ Drawings

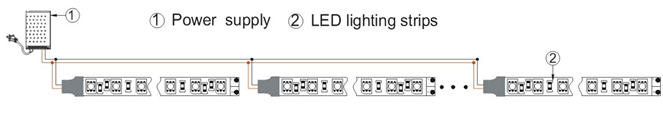

※ Connections

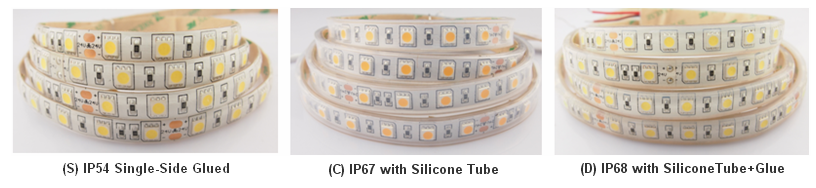

※ Different Waterproof Version
※ Packing
Remark: Each reel will be packed in an antistatic bag and then to a box. Every four small boxes to a big box, if required
