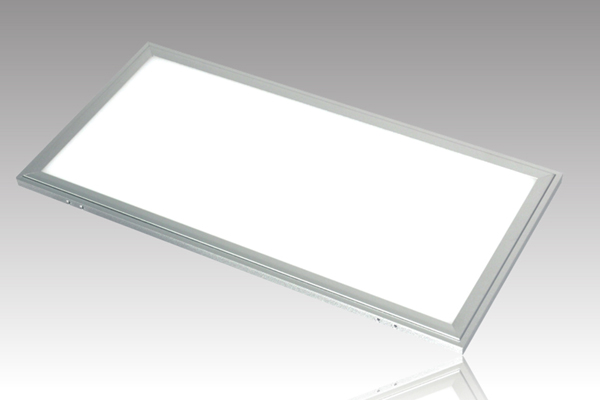

With Temperature Sensor
Dimension: 300x600, 600x600
Power: 15W/ 30W
LED: CRI90 SMD3528 (two chips in one LED)
Color: 2500K to 6500K adjustable
Color Rendering: CRI(Ra)≥90
With inside constant current driver with temperature sensor
※ Features
Features of QL Temperature Sensor Constant Current Strips:
● Constant current version but with constant voltage input.
● Can be working with DC24V power supply directly
● Can be working with any DC24V PWM control system or dimmer, such as DMX512, Dali, RF, 0-10V, etc. The application is very conveniently
● CRI(Ra)≥90
● Made with Super bright SMD2835 LED
● High accurate constant current driver with very stable quality.
● Super quality aluminum body ensures super heat dissipation.
※ Parameters
| Model No. | Size (mm) | Color | CT/K | LED Type | LED Qty | Power | Voltage | Lumen | CRI |
| QL-PL300X600TH-DB | 295*595 | CCT Adjustable | 2500-7000K | 3528 | 192 | 15W | DC24V | 1000lm±10% | ≥90 |
| QL-PL600X600TH-DB | 595*595 | 384 | 30W | DC24V | 2000lm±10% |

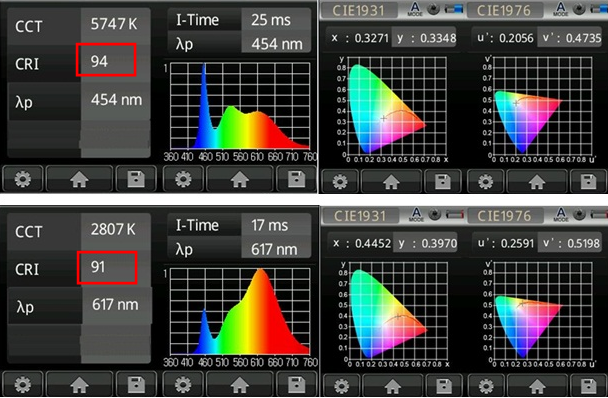

※ Light Source Test Report:

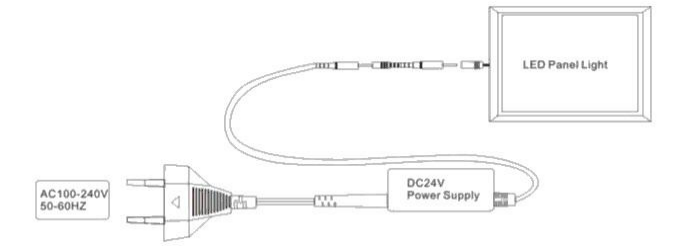

※ Connection

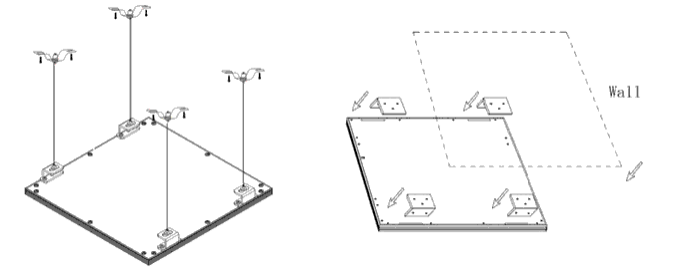

※ Installation
※ Applications
● Hotels, conference, meetings rooms.
● Factories Offices
● Commercial Purpose
● Residential/Institution Buildings
● Schools, Colleague, Universities, Hospitals
● Call centers, shopping malls and exhibition Hall and other public places
● Exhibition halls, art galleries, museums, offices, reading rooms, contour range.
