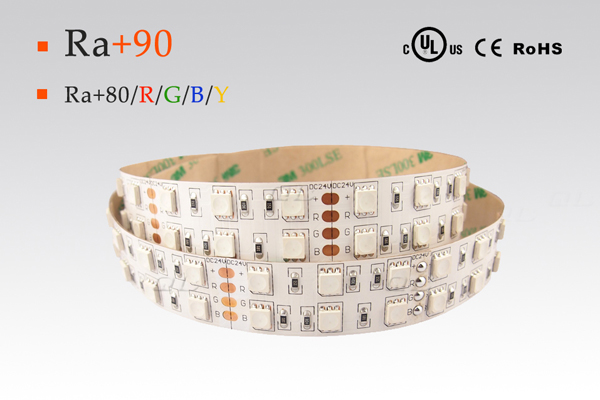

5050 Double-Line LED Strips

LED Type: CRI≥90 SMD5050
Input Voltage: DC24V
Color: Warm White, Nature White, Pure White, Red, Yellow, Green, Blue, RGB
LED Qty:240LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features of 5mm LED Stripsundefined

● Double-Line version to illuminate wider place.

  Parametersundefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90
QL-5050A60SA-P-245050120DC24V28.8W/m20mmIP20≥90Pure White6000-7000K2600-2700
QL-5050A60SA-N-24Nature White4000-4500K2500-2600
QL-5050A60SA-WW-24Warm White3000-3500K2400-2500
QL-5050A60SA-W-242500-2700K2300-2200
Normal CRI Series
QL-5050A60-P-245050120DC24V28.8W/m20mmIP20≥80Pure White6000-7000K2300-2500
QL-5050A60-N-24Nature White4000-4500K2100-2300
QL-5050A60-W-24Warm White3000-3500K2000-2100
QL-5050A60-WW-242500-2700K1900-2000
QL-5050A60-VW-242200-2400K1800-1900
QL-5050A60-R-24/Red620-630900-1000
QL-5050A60-Y-24Yellow585-595900-1000
QL-5050A60-B-24Blue455-470600-650
QL-5050A60-G-24Green510-5251680-1720
QL-5050A60-C-24RGBR: 620-6301200-1400
G: 510-525
B: 455-470
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube

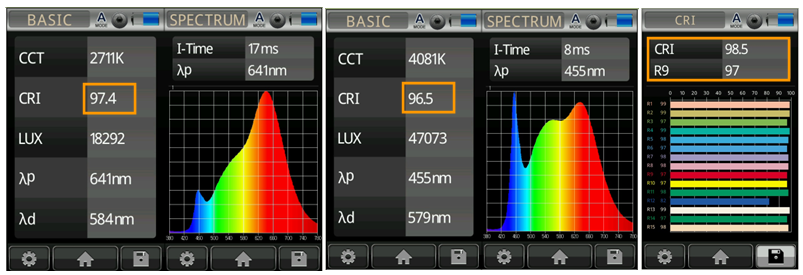

  Testing Report for Color Renderingundefined


undefined

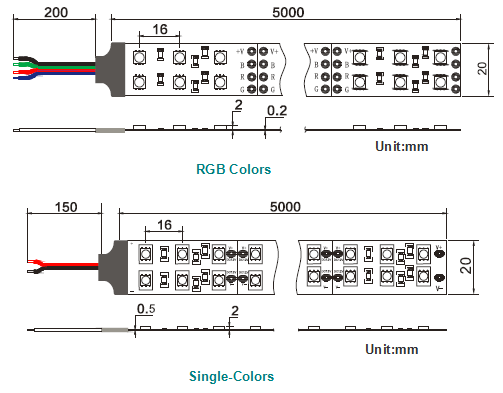

  Drawingsundefined


undefined

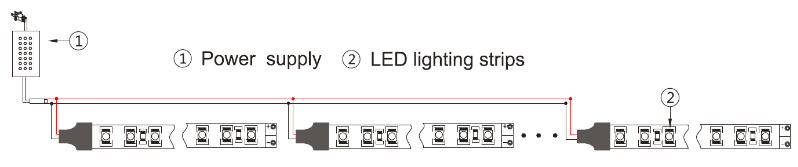

  Connectionsundefined


undefined

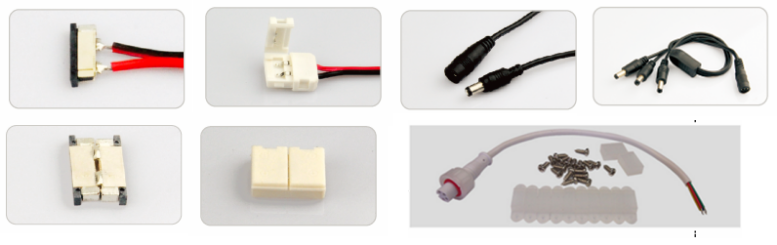

 Accessories

undefined


undefined

 Packing

undefined
