prevnext: 3528 Double-Line LED Strips

LED Type:CRI≥90/95 SMD3528
Input Voltage: DC24V
Color: Warm White, Nature White, Pure White, Red, Yellow, Green, Blue
LED Qty: 240LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube

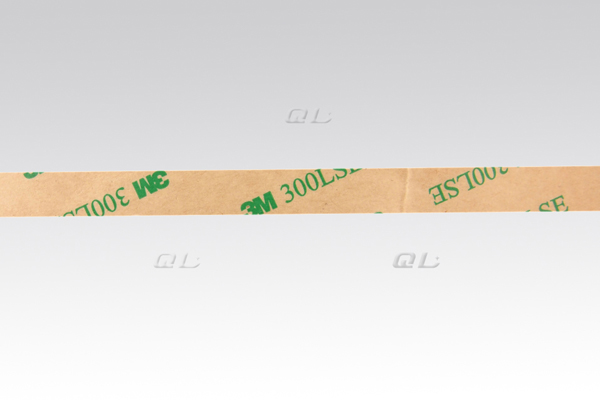

With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features of 5mm LED Strips

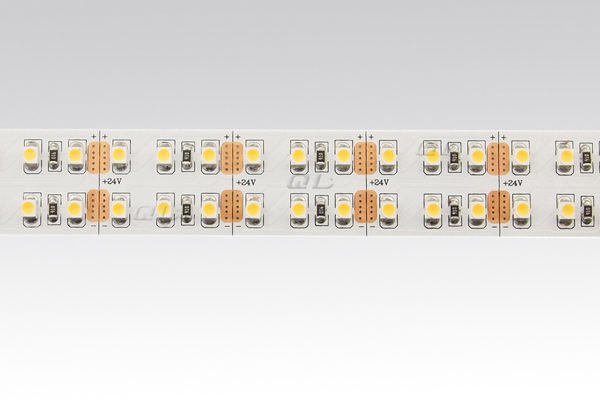

● Double-Line version to illuminate wider place.

※ Parameters

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥95
QL-F3528X120SA-P-24-95	3528	240	DC12V DC24V	28.8W/m	20mm	IP20 IP67	≥95	Pure White	6000-7000K	2600-2700
QL-F3528X120SA-N-24-95								Nature White	4000-4500K	2500-2600
QL-F3528X120SA-WW-24-95								Warm White	3000-3500K	2400-2500
QL-F3528X120SA-W-24-95									2500-2700K	2300-2400
CRI≥90
QL-F3528X120SA-P-24	3528	240	DC12V DC24V	28.8W/m	20mm	IP20 IP67	≥90	Pure White	6000-7000K	2700-2800
QL-F3528X120SA-N-24								Nature White	4000-4500K	2600-2700
QL-F3528X120SA-WW-24								Warm White	3000-3500K	2500-2600
QL-F3528X120SA-W-24									2500-2700K	2400-2500
CRI≥80
QL-F3528X120-R-24	3528	240	DC12V DC24V	19.2W/m	15mm	IP20 IP67	/	Red	620-630	650-700
QL-F3528X120-Y-24								Yellow	585-595	650-700
QL-F3528X120-B-24								Blue	455-470	400-450
QL-F3528X120-G-24								Green	510-525	1200-1400
QL-F3528X120-P-24							≥80	Pure White	6000-7000K	1600-1700
QL-F3528X120-N-24								Nature White	4000-4500K	1500-1600
QL-F3528X120-W-24								Warm White	3000-3500K	1300-1400
QL-F3528X120-WW-24									2500-2700K	1250-1300
QL-F3528X120-VW-24									2200-2400K	1200-1250
Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube
