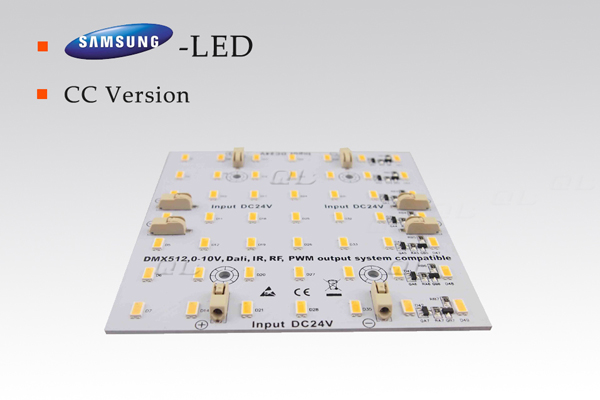

LED Type: SAMSUNG SMD5630
Input Voltage: DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 49LED/pcs
Beam Angle: 120 degree
IP Ratio: IP20 Version
※ Features
● Features of QL Temperature Sensor Constant Current Strips:
● Constant current version: with stable current, suitable for high quality requirements project.
● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.
● Can work with unstable power supply and without damage.
● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.
● Brightness uniform: With same brightness from the first end to the last end for around 10m.
● DC24V version: can work with DC20V to DC30V Input
● DC 12V version: can work with DC10V to DC15V Input
※ Parameters for CC Version
| Model No. | LED Type | LED Qty (pcs) | Work Voltage | Power | PCB Size | Water proof | CRI | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| SAMSUNG LED, DC24V Input Temperature Sensor Constant Current Version | ||||||||||
| QL-M5630A49-WW-24C-SG2 | 5630 | 49 | DC24V | 10W/m | 100*100 mm/pcs | IP20 | ≥80 | Warm White | 2700-2900K | 1000-1100 |
| QL-M5630A49-W-24C-SG2 | 3000-3200K | 1100-1200 | ||||||||
| QL-M5630A49-N-24C-SG2 | Nature White | 4000-4500K | 1200-1300 | |||||||
| QL-M5630A49-P-24C-SG2 | Pure White | 6000-7000K | 1300-1400 | |||||||
| Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube | ||||||||||

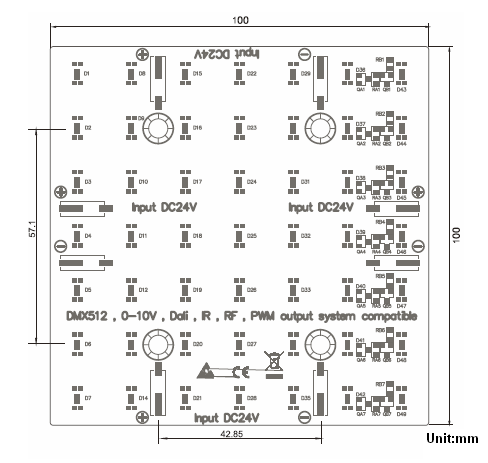

※ Drawings

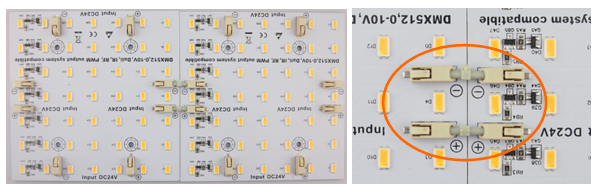

※ Connections

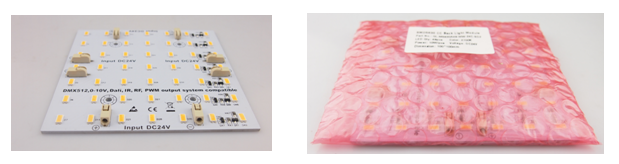

※ packing
※ Accessories
