LED Type: COB LED
Input Voltage: DC24V
Color: RGB Digital (SPI/WS2811) 10 Pixel/m
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
Cutting: 100mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
● COB Version, no light spot!
● RGB Digital side-view version for special application.
※ Parameters
| Model No. | LED T ype | LED Qty | Voltage | Power | Cutting | PCB Size | Water proof | Color | lumen (lm/m) | |
| QL-F0603A420-D-24-COBSD | COB LED | 420 LED/m | DC24V CV Version | 15W/m | 100mm | 10mm | IP20 | RGB Digital (SPI / WS2811)10 Pixel /m | 480-520 | |
| QL-F0603C420-D-24-COBSD | IP67 | |||||||||
| Remark: Waterproof type. A for Non-waterproof IP20, C for IP67 | ||||||||||

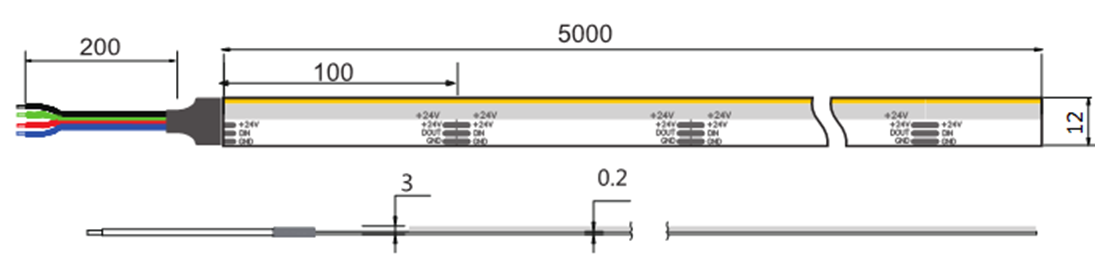

※ Drawings

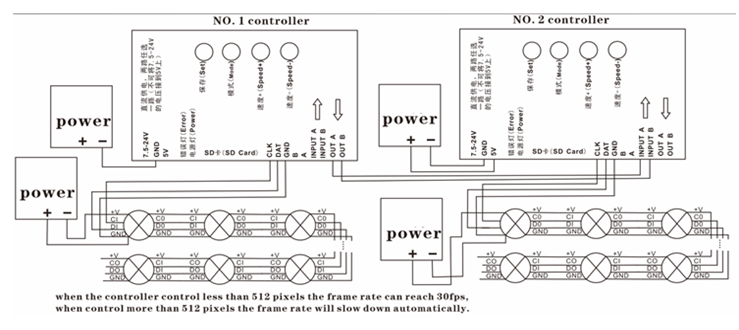

※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
