LED Type: COB LED
Input Voltage: DC24V
Color: RGB
IP Ratio: IP20
IP20: Non-waterproof Version
Cutting: 50mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
● COB Version, no light spot!
● With bounding-wall
※ Parameters
| Model No. | LED T ype | LED Qty | Voltage | Power | Cutting | PCB Size | Water proof | Color | (CT:K) | lumen (lm/m) |
| QL-F0603A504SA-T-24-COBSD | COB LED | 840 LED/m | DC24V CV Version | 12W/m | 50 mm | 12mm | IP20 | ■■■RGB | 620-630nm 520-525nm 460-465nm | 240-260 |
| QL-F0603C504SA-T-24-COBSD | IP67 | |||||||||
| Remark: Waterproof type. A for Non-waterproof IP20, C for IP67 | ||||||||||
※ Drawings

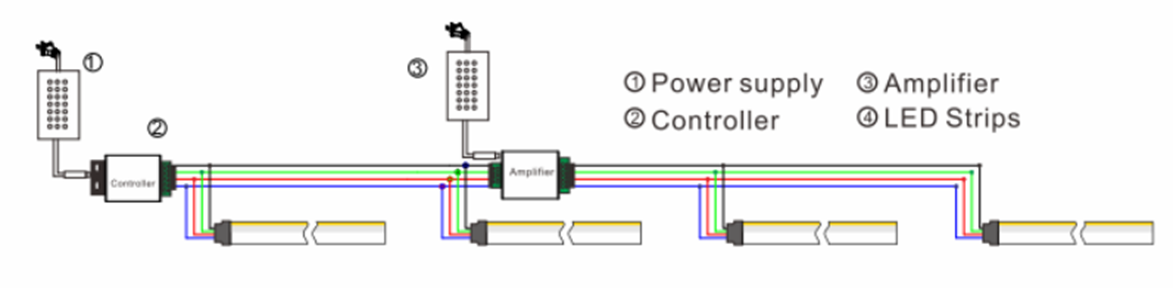

※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
