LED Type: CRI90+ COB LED
Input Voltage: DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
Cutting: 55.55mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved.
※ Features
● COB Version, no light spot!
● 5mm width small type
※ Parameters
| Model No. | LED | Voltage | Cutting | CRI(Ra) | PCB Size | Water proof | Color | (CT:K) | lumen (lm/m) |
| Power | CC/CV | ||||||||
| QL-F0603A189SA-R-24-COBSD | COB LED 378 LED/m | DC24V 10W/m | 55.55mm | ≥90 CV Version | 10mm | IP20 | █ Red | / | 120-130 |
| QL-F0603A189SA-G-24-COBSD | █ Green | / | 400-450 | ||||||
| QL-F0603A189SA-B-24-COBSD | █ Blue | / | 75-85 | ||||||
| QL-F0603A189SA-Y-24-COBSD | █ Yellow | / | 450-500 | ||||||
| QL-F0603A189SA-PK-24-COBSD | █ Yellow | / | 450-500 | ||||||
| QL-F0603C189SA-R-24-COBSD | COB LED 378 LED/m | DC24V 10W/m | 55.55mm | ≥90 CV Version | 10mm | IP67 | █ Red | / | 120-130 |
| QL-F0603C189SA-G-24-COBSD | █ Green | / | 400-450 | ||||||
| QL-F0603C189SA-B-24-COBSD | █ Blue | / | 75-85 | ||||||
| QL-F0603C189SA-Y-24-COBSD | █ Yellow | / | 450-500 | ||||||
| QL-F0603C189SA-PK-24-COBSD | █ Yellow | / | 450-500 |

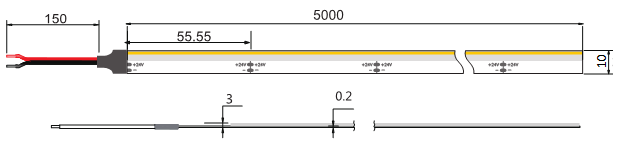

※ Drawings

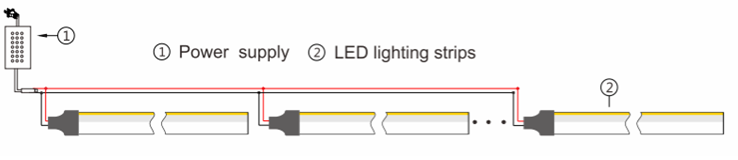

※ Connections
※ Testing Report for Color Rendering
※ Accessories
※ Different Waterproof Version
※ Packing
