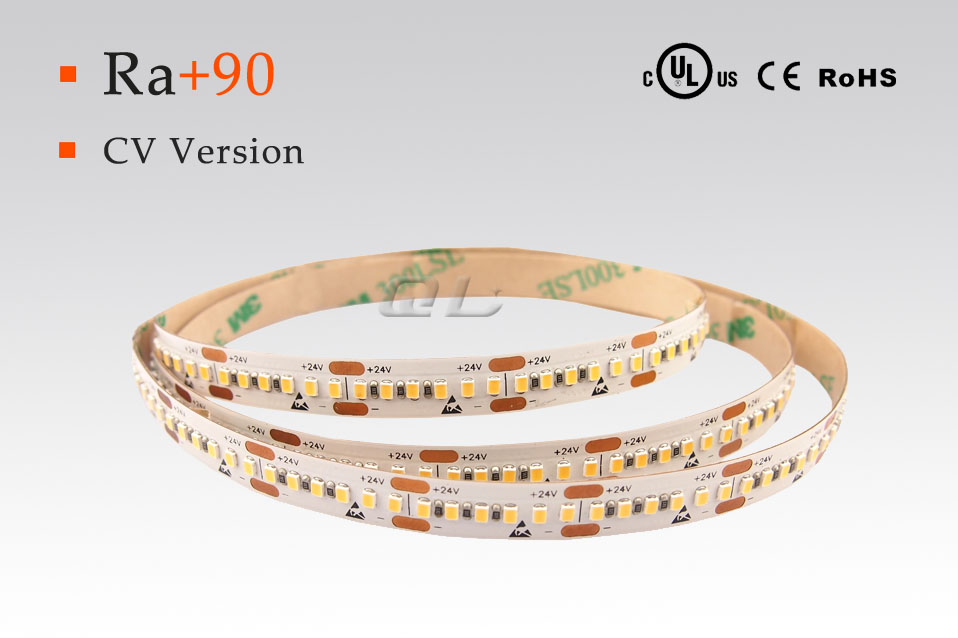

LED Type: CRI≥90 SMD2016
Input Voltage:DC12V/DC24V
Color: Warm White, Nature White, Pure White
LED Qty: 60LED/m, 120LED/m, 180LED/m, 240LED/m, 300LED/m, 480LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP67: With Silicone Tube
UL, CUL, CE, RoHS approved
※ Features of 3-Step LED Strips
Very Ideal Color Uniform bring you very nice feeling.
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | Color | λ(Nm)/(CT:K) | Lumen (lm/m) |
| CRI≥90 Version (3-Step Mac-Adam) | |||||||||
| QL-F2016X30SA-W-12/24 | SMD2016 | 60 | DC24V DC12V | 4.8W/m | 8mm | IP20 IP67 | □Warm White | 1800/2200/2700/ 3000/3500K | 280-400 |
| QL-F2016X30SA-N-12/24 | □Nature White | 4000/5000K | 400-420 | ||||||
| QL-F2016X30SA-P-12/24 | □Pure White | 6500K | 420-440 | ||||||
| QL-F2016X60SA-W-12/24 | SMD2016 | 120 | DC24V DC12V | 9.6W/m | 8mm | IP20 IP67 | □Warm White | 1800/2200/2700/ 3000/3500K | 560-800 |
| QL-F2016X60SA-N-12/24 | □Nature White | 4000/5000K | 800-840 | ||||||
| QL-F2016X60SA-P-12/24 | □Pure White | 6500K | 840-880 | ||||||
| QL-F2016X90SA-W-12/24 | SMD2016 | 180 | DC24V DC12V | 14.4W/m | 8mm | IP20 IP67 | □Warm White | 1800/2200/2700/ 3000/3500K | 800-1100 |
| QL-F2016X90SA-N-12/24 | □Nature White | 4000/5000K | 1100-1200 | ||||||
| QL-F2016X90SA-P-12/24 | □Pure White | 6500K | 1200-1300 | ||||||
| QL-F2016X120SA-W-12/24 | SMD2016 | 240 | DC24V DC12V | 19.2W/m | 10mm | IP20 IP67 | □Warm White | 1800/2200/2700/ 3000/3500K | 1100-1600 |
| QL-F2016X120SA-N-12/24 | □Nature White | 4000/5000K | 1600-1650 | ||||||
| QL-F2016X120SA-P-12/24 | □Pure White | 6500K | 1650-1700 | ||||||
| QL-F2016X150SA-W-12/24 | SMD2016 | 300 | DC24V DC12V | 24W/m | 10mm | IP20 | □Warm White | 1800/2200/2700/ 3000/3500K | 1400-2000 |
| QL-F2016X150SA-N-12/24 | □Nature White | 4000/5000K | 2000-2100 | ||||||
| QL-F2016X150SA-P-12/24 | □Pure White | 6500K | 2100-2200 | ||||||
| QL-F2016X240SA-W-24 | SMD2016 | 480 Double-Line | DC24V | 38.4W/m | 15mm | IP20 | □Warm White | 1800/2200/2700/ 3000/3500K | 2200-3200 |
| QL-F2016X240SA-N-24 | □Nature White | 4000/5000K | 3200-3300 | ||||||
| QL-F2016X240SA-P-24 | □Pure White | 6500K | 3300-3400 | ||||||
| Remark: X is for Waterproof type. A for Non-waterproof, S for IP54, C for IP67, D for IP68 Version | |||||||||
※ Testing Report for Color Rendering
※ Bin Chart of 1 or 3 Step Macadam Ellipse LED
※ Drawings
※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
