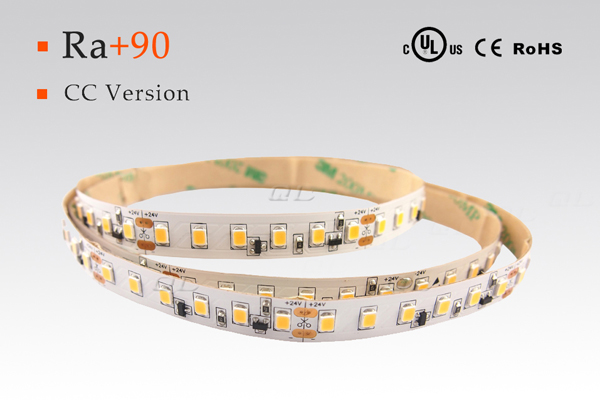

Ra+90 2835 CC LED Strips

LED Type: CRI≥90 SMD2835
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 60LED/m, 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

 Parameters
undefined


Model No.LED
 Type
LED
Qty
(m)
Work VoltagePowerPCB
Size
Water
proof
CRIColorλ(Nm)
/(CT:K)
Lumen
(lm/m)
CRI90, DC24V Input Temperature Sensor Constant Current Version
QL-F2835X30SA-WW-24C283560DC24V14.4W/m 10mmIP20
IP67
90Warm White2500-2700K900-950
QL-F2835X30SA-W-24C3000-3500K950-1000
QL-F2835X30SA-N-24CNature White4000-4500K1000-1050
QL-F2835X30SA-P-24CPure White6000-7000K1050-1100
QL-F2835X60SA-WW-24C2835120DC24V19.2W/m 10mmIP20
IP67
90Warm White2500-2700K1450-1500
QL-F2835X60SA-W-24C3000-3500K1500-1600
QL-F2835X60SA-N-24CNature White4000-4500K1600-1700
QL-F2835X60SA-P-24CPure White6000-7000K1700-1800
Remark: X stands for waterproof version,  A for IP20 non-waterproof version, C for IP67 version with silicone tube


 Testing Report for Color Rendering
undefined


undefined

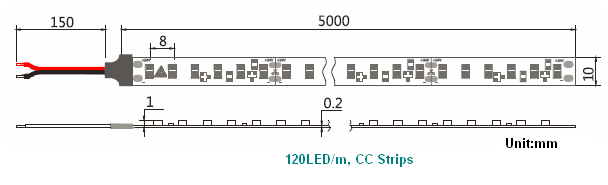

 Drawingsundefined
