prevnext: RGBW COB LED Strips

LED Type: COB LED
Input Voltage: DC24V
Color: RGBW
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube

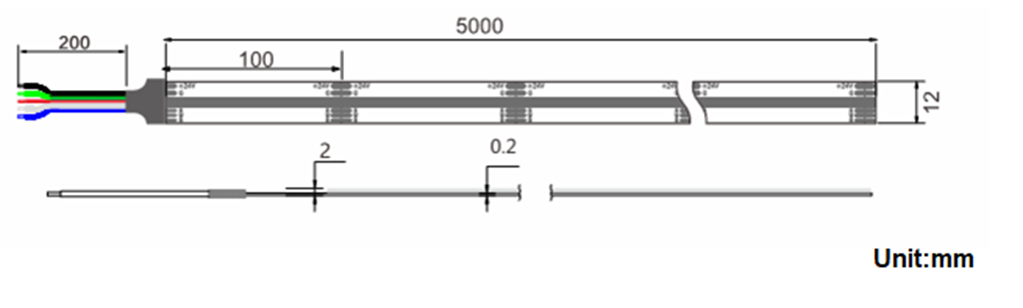

Cutting: 100mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features

● COB Version, no light spot!

● RGBW, more color for your choice!

※ Parameters

Model No.	LED T ype	LED Qty	Voltage	Power	Cutting	PCB Size	Water proof	(CT:K)	lumen (lm/m)

QL-F0603A280-CWW-24-COB	COB LED	560 LED/m	DC24V CV Version	14W/m	100mm	12mm	IP20	RGB+2700K	650-700
QL-F0603A280-CW-24-COB								RGB+3000K	650-700
QL-F0603A280-CN-24-COB								RGB+4000K	700-750
QL-F0603A280-CP-24-COB								RGB+6000K	700-750
QL-F0603C280-CWW-24-COB	COB LED	560 LED/m	DC24V CV Version	14W/m	100mm	12mm	IP67	RGB+2700K	650-700
QL-F0603C280-CW-24-COB								RGB+3000K	650-700
QL-F0603C280-CN-24-COB								RGB+4000K	700-750
QL-F0603C280-CP-24-COB								RGB+6000K	700-750
Remark: Waterproof type. A for Non-waterproof IP20, C for IP67
