LED Type: SMD5050+SMD2835
Input Voltage: DC24V
Color: WRGBW
LED Qty: 144LED/pcs
Size: 480*240mm
Waterproof: IP20
UL, CUL, CE, RoHS approved
※ Features
Free cut for special application.
※ Parameters
| Model No. | LED Qty/pcs | CC/CV | Voltage Power | Size | Cutting | Color | λ(Nm)/(CT:K) | Lumen (lm/pcs) |
| QL-M5050A144-CWW-24-1P | 5050+2835 144 LEDs/pcs CRI95+ | CV | DC24V 60W/pcs | 480*240 mm | 40*40 mm | ■: Red ■: Blue ■: Green □: White | ■■■□ RGB+2700K | ■: 580 ■: 250 ■: 1300 □: 1350 |
| QL-M5050A144-CW-24-1P | ■■■□ RGB+3000K | ■: 580 ■: 250 ■: 1300 □: 1400 | ||||||
| QL-M5050A144-CN-24-1P | ■■■□ RGB+4000K | ■: 580 ■: 250 ■: 1300 □: 1500 | ||||||
| QL-M5050A144-CP-24-1P | ■■■□ RGB+6000K | ■: 580 ■: 250 ■: 1300 □: 1500 |

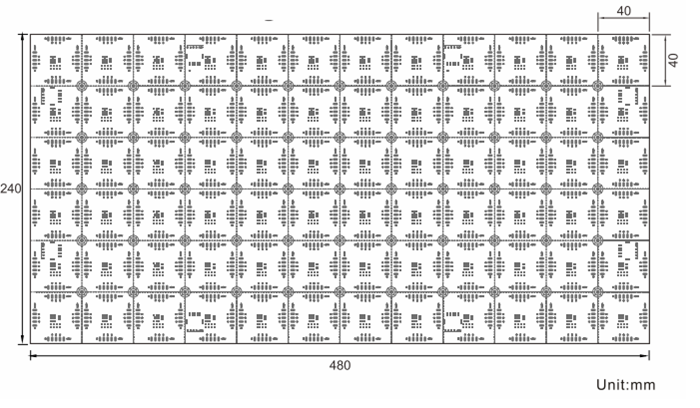

※ Dimensions
※ Accessories
