LED Type: COB LED
Input Voltage: DC24V
Color: RGB
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
Cutting: 31.25mm, 55.55mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
● COB Version, no light spot!
● With bounding-wall
※ Parameters
| Model No. | LED T ype | LED Qty | Voltage | Power | Cutting | PCB Size | Water proof | Color | (CT:K) | lumen (lm/m) |
| QL-F0603A336-C-24-COBCES | COB LED | 672 LED/m | DC24V CV Version | 13W/m | 31.25 mm | 10mm | IP20 | ■■■RGB | 620-630nm 520-525nm 460-465nm | 300-350 |
| QL-F0603C336-C-24-COBCES | IP67 | |||||||||
| QL-F0603A567SA-C-24-COB | COB LED | 1134 LED/m | DC24V CV Version | 15W/m | 55.55 mm | 12mm | IP20 | ■■■RGB | 620-630nm 520-525nm 460-465nm | 550-600 |
| QL-F0603C567SA-C-24-COB | IP67 | |||||||||
| Remark: Waterproof type. A for Non-waterproof IP20, C for IP67 | ||||||||||

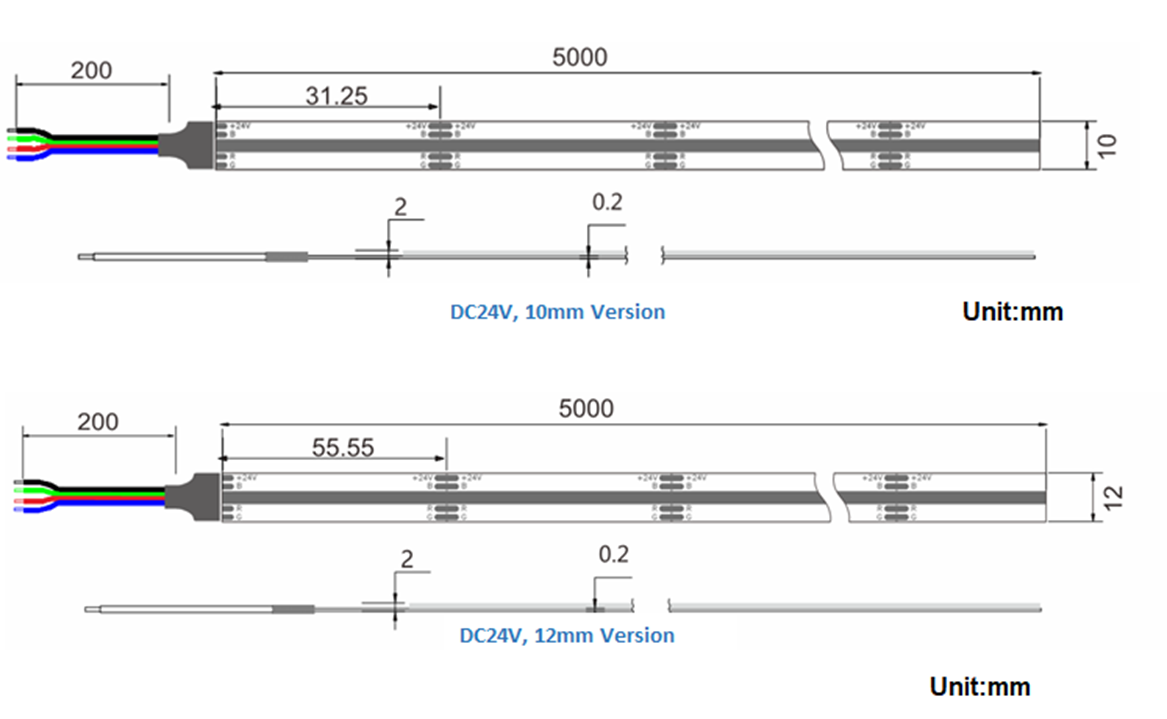

※ Drawings

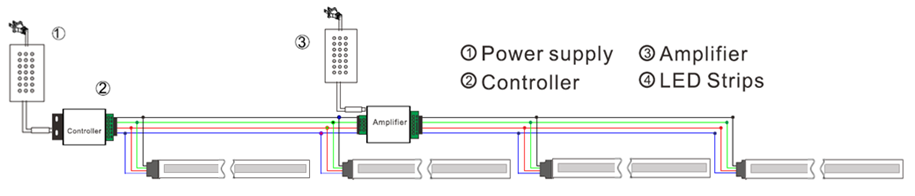

※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
