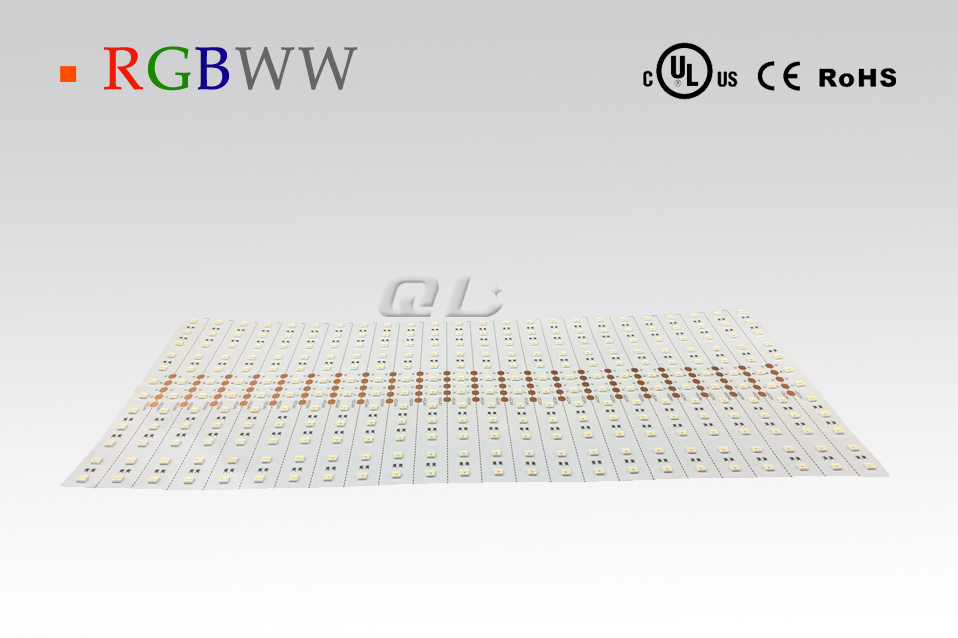

LED Type: RGB2W LED
Input Voltage: DC24V
Color: Red, Green, Blue and 2White(PW, NW, WW)
LED Qty: 288LED/pcs
Beam Angle: 120 degree
IP Ratio: IP20 Version
※ Features
● RGB+2W LED can give you full choice of color.
● It is cuttable. very convenient application.
※ Parameters
| Model No. | LED Qty/pcs | CC/CV | Work Voltage | Power | Size | Color | λ(Nm)/(CT:K) | Lumen (lm/pcs) | |
| QL-M5050A144-WCW-24 | 288 LED/pcs | CV | DC24V | 90W/pcs | 480*240 mm | ■: Red ■: Blue ■: Green □: Warm White □: Nature White □: Pure White | □■■■□ 2000K+RGB+2000K 2700K+RGB+2700K 3000K+RGB+3000K | ■: 540-559 ■: 400-410 ■: 1300-1400 □: 3700-3800 □: 3800-3900 □:3900-4000 | |
| QL-M5050A144-NCN-24 | □■■■□ 4000K+RGB+4000K | ||||||||
| QL-M5050A144-PCP-24 | □■■■□ 6000K+RGB+6000K | ||||||||

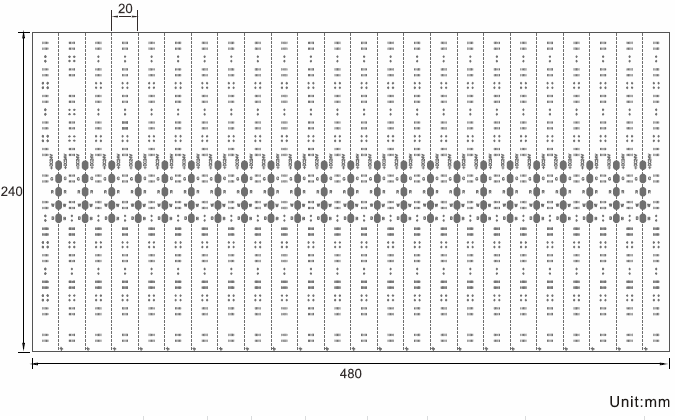

※ Dimensions
※ Accessories
