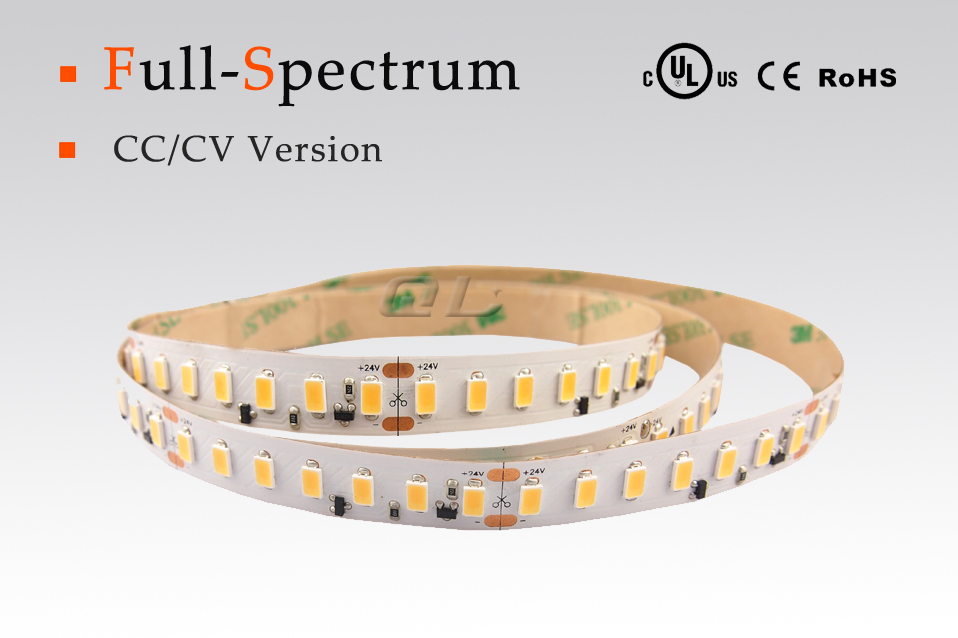

Full Spectrum 5630 LED Strips|5630 LED Strips|

Address: 6f, blog d, shuitian dingfeng tech. park, shiyan town, baoan district, shenzhen city, guangdong, china

Tel: +86-755-29682086

Fax: +86-755-29682109

Skype: qlsales

prevnext: Full Spectrum 5630 LED Strips

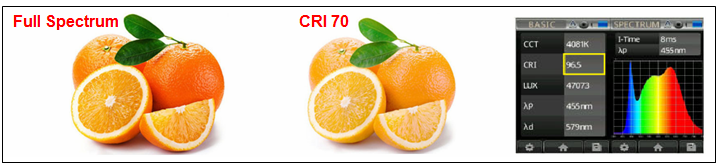

LED Type: Full Spectrum CRI≥95 SMD5630
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 60LED/m, 70LED/m, 126LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● With temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters for CC Version

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm)/(CT:K)	Lumen (lm/m)
CC Version
QL-F5630X30-W-12C-FS	SMD5630	60	DC12V	15W/m	10mm	IP20/ IP67	Full-Spectrum	□Warm White	2700/3000K	1150-1200
QL-F5630X30-N-12C-FS								□Nature White	4000-4500K	1250-1300
QL-F5630X30-P-12C-FS								□Pure White	6000-6500K	1300-1400
QL-F5630X35-W-24C-FS	SMD5630	70	DC24V	15W/m	10mm	IP20/ IP67	Full-Spectrum	□Warm White	2700/3000K	1350-1400
QL-F5630X35-N-24C-FS								□Nature White	4000-4500K	1450-1500
QL-F5630X35-P-24C-FS								□Pure White	6000-6500K	1500-1600
QL-F5630A63-W-24C-FS	SMD5630	126	DC24V	22W/m	12mm	IP20	Full-Spectrum	□Warm White	2700/3000K	1800-1900
QL-F5630A63-N-24C-FS								□Nature White	4000-4500K	2000-2100
QL-F5630A63-P-24C-FS								□Pure White	6000-6500K	2100-2200
Remark: X is for Waterproof type. A for Non-waterproof, C for IP67

※ Parameters for CV Version

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm)/(CT:K)	Lumen (lm/m)
CV Version
QL-F5630X30-W-12/24-FS	SMD5630	60	12/24V	14.4W/m	10mm	IP20 /IP67	Full-Spectrum	□Warm White	2700/3000K	1100-1200
QL-F5630X30-N-12/24-FS								□Nature White	4000-4500K	1200-1300
QL-F5630X30-P-12/24-FS								□Pure White	6000-6500K	1300-1400
Remark: X is for Waterproof type. A for Non-waterproof, C for IP67
