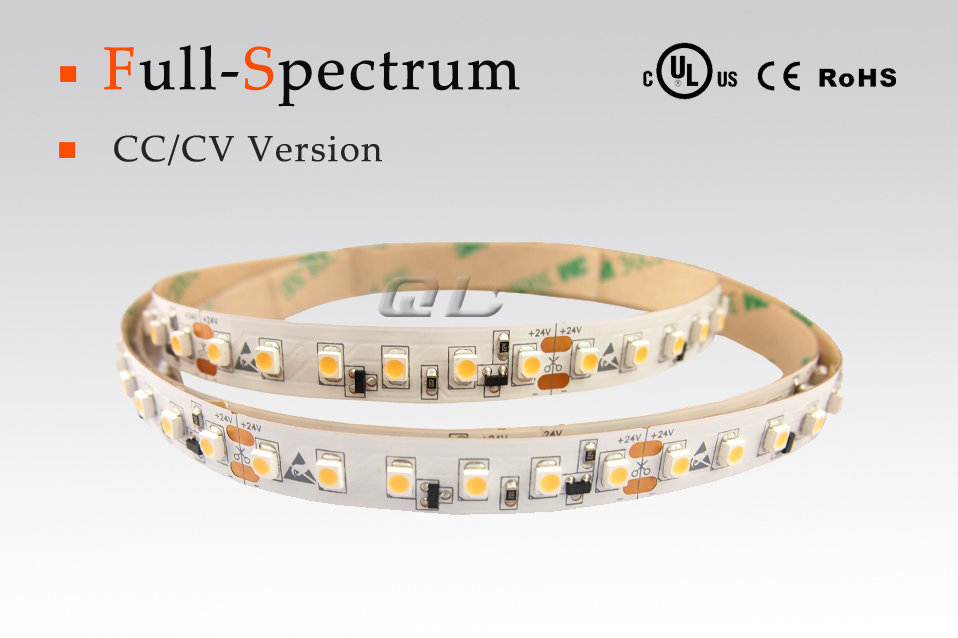

Full Spectrum 3528 Strips

LED Type: Full Spectrum SMD3528
Input Voltage: DC12V/DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 60LED/m, 120LED/m, 228LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

 Features
undefined

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input


 Parameters
undefined


Model   No.LED QtyWork VoltagePowerWater
    proof
PCB
    Size
    mm
Water
    proof
Colorλ(Nm)/(CT:K) Luminous Flux
Constant Voltage Version
QL-F3528X30-P-12/24-FSSMD   3528
    60/m
12V
    /24V
4.8W/mFull-Spectrum8mmIP20
    IP54
    IP67
    IP68
Pure   White6000-7000K400-420
QL-F3528X30-N-12/24-FSNature   White4000-4500K380-400
QL-F3528X30-W-12/24-FSWarm   White2700/3000K350-380
QL-F3528X60-P-12/24-FSSMD 3528
    120/m
12V
    /24V
9.6W/mFull-Spectrum8mmIP20
    IP54
    IP67
    IP68
Pure   White6000-7000K800-840
QL-F3528X60-N-12/24-FSNature   White4000-4500K760-800
QL-F3528X60-W-12/24-FSWarm   White2700/3000K700-760
Constant Current Version
QL-F3528X30-P-24C-FSSMD   3528
    60/m
24V
    CC
4.8W/mFull-Spectrum10mmIP20
    IP54
    IP67
    IP68
Pure   White6000-7000K400-420
QL-F3528X30-N-24C-FSNature   White4000-4500K380-400
QL-F3528X30-W-24C-FSWarm   White2700/3000K350-380
QL-F3528X60-P-24C-FSSMD   3528
    120/m
24V
    CC
9.6W/mFull-Spectrum10mmIP20
    IP54
    IP67
    IP68
Pure   White6000-7000K800-840
QL-F3528X60-N-24C-FSNature   White4000-4500K760-800
QL-F3528X60-W-24C-FSWarm   White2700/3000K700-760
QL-F3528X114-P-24C-FSSMD3528
    228/m
24V
    CC
DC24VFull-Spectrum12mmIP20
    IP54
    IP67
    IP68
Pure   White6000-6500K1500-1600
QL-F3528X114-N-24C-FSNature   White4000-4500K1400-1500
QL-F3528X114-W-24C-FSWarm   White2700/3000K1300-1400
Remark:

X   is for Waterproof type. A for IP20 Non-waterproof, B for IP54 (with epoxy   glue),
             S for IP54 ( with   silicone glue) , C for IP67,  D for   IP68

 Testing Report for Color Rendering
undefined

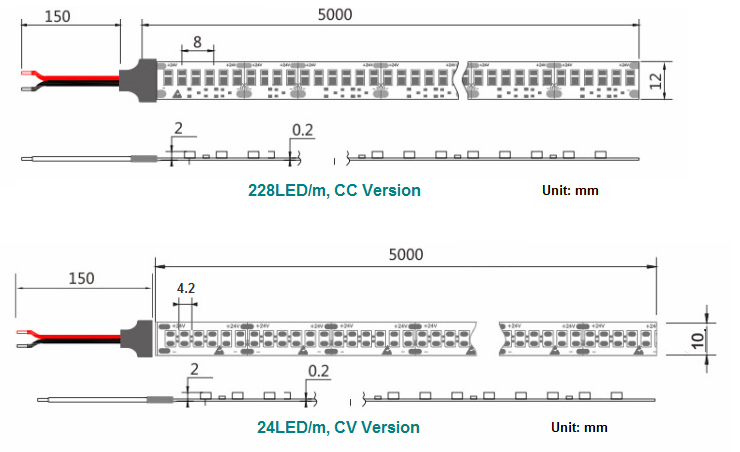

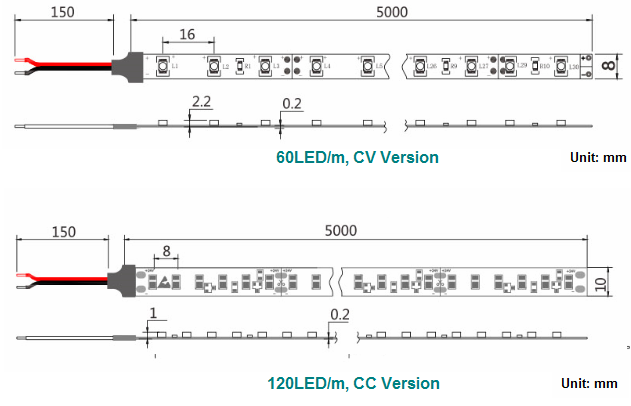

 Drawings

undefined



 Connections
undefined


undefined



 Accessories

undefined


undefined

 Different Waterproof Version
undefined
